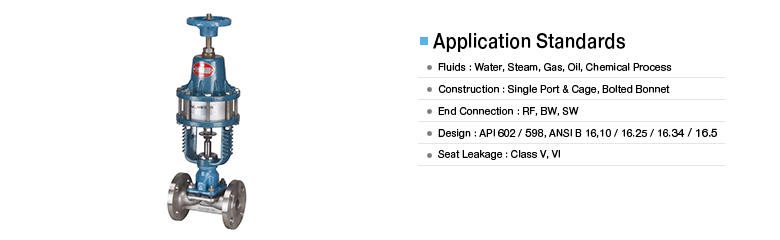

| 온/오프 타입 |
| |
 |
| |
 Specification |
| Valve Size |
25A(1") ~ 80A(3") |
| Actuator Model |
Cylinder Type |
| Actuator Action |
Pneumatic Double Acting / Spring Return(with Dry Air) |
| Operating Press |
4.5 ~ 7kg/㎠ |
| Liner Adjust |
Manual Handle |
| Fluid Temp |
-30℃ ~ 220℃ |
| Rating |
ANSI 150# / JIS10K/20K |
| Body Material |
Body(A351 CF8, A216 WCB) / Trim(A182 F304, 316) |
| Accessory |
Solenoid Valve, Limit Switch, Air filter Regulator |
|
| |
| Wiring Diagram |
 |
| |

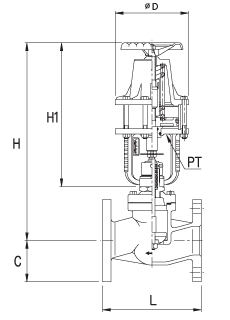

| Dimension |
| Unit :mm |
| Model |
Size |
H
(Approx) |
H1 |
C |
L |
PT |
| mm |
inch |
| TVGV-25A |
25A |
1" |
355 |
380 |
54 |
184 |
1/4" |
| TVGV-32A |
32A |
1-1/4" |
361 |
380 |
54 |
222 |
1/4" |
| TVGV-40A |
40A |
1-1/2" |
361 |
380 |
64 |
222 |
1/4" |
| TVGV-50A |
50A |
2" |
373 |
380 |
76 |
254 |
1/4" |
| TVGV-65A |
65A |
2-1/2" |
422 |
430 |
89 |
296 |
1/4" |
| TVGV-80A |
80A |
3" |
422 |
430 |
95 |
398 |
1/4" |
|
|
|
