| ON-OFF TYPE |
| |
| |
 |
| |
 Specification |
| Valve Size |
15A(1/2") ~ 350A(14") |
| Actuator Model |
AP220 ~ AP470 |
| Actuator Type |
Pneumatic Multi Spring Diaphragm / Cylinder - Linear Action (with Dry Air) |
| Operating Pressure |
3 ~ 5kg/㎠ |
| Fluid Temperature |
-100℃ ~ 560℃ |
| Rating |
KS 10K, KS 20K, ANSI 150# |
| Body |
Body(A216 WCB, SCS13, SCS14, A182 F304) / Trim(A182 F304, 316) / Packing(Graphite, viton) |
| Accessory |
Solenoid Valve, Air filter Regulator, E/P Positioner |
|
| |
| Wiring Diagram |
 |
| |

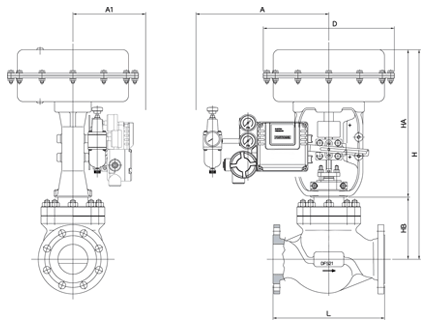

| Dimension |
| mm |
| Size |
Stroke |
L |
H |
HA |
HB |
D |
A |
A1 |
Weight |
| Model / mm |
Inch |
| TAGV-15A |
1/2" |
20 |
140 |
377 |
276 |
100 |
220 |
250 |
140 |
13 |
| TAGV-20A |
3/4" |
20 |
152 |
377 |
276 |
100 |
220 |
250 |
140 |
13 |
| TAGV-25A |
1" |
20 |
165 |
382 |
276 |
106 |
220 |
250 |
140 |
16 |
| TAGV-32A |
1-1/4" |
25 |
178 |
431 |
320 |
111 |
270 |
260 |
140 |
22 |
| TAGV-40A |
1-1/2" |
25 |
190 |
431 |
320 |
111 |
270 |
260 |
140 |
22 |
| TAGV-50A |
2" |
25 |
216 |
444 |
320 |
111 |
270 |
260 |
140 |
28 |
| TAGV-65A |
2-1/2" |
30 |
265 |
529 |
394 |
155 |
270 |
260 |
190 |
48 |
| TAGV-80A |
3" |
40 |
280 |
561 |
394 |
165 |
350 |
270 |
190 |
61 |
| TAGV-100A |
4" |
40 |
330 |
581 |
394 |
185 |
350 |
270 |
190 |
176 |
| TAGV-125A |
5" |
50 |
370 |
780 |
500 |
280 |
470 |
300 |
250 |
155 |
| TAGV-150A |
6" |
50 |
412 |
815 |
525 |
290 |
470 |
300 |
250 |
175 |
| TAGV-200A |
8" |
75 |
502 |
935 |
585 |
350 |
470 |
300 |
250 |
280 |
| TAGV-250A |
10" |
75 |
568 |
935 |
585 |
430 |
470 |
300 |
250 |
350 |
|
|
|
