 Specification |
| Model |
TVNS (Single Coil) |
TVNS-D (Double Coil) |
| Fluid |
Air & Inert Gas |
| Pressure (Bar) |
1.5 ~ 10.0 |
2.0 ~ 10.0 |
| Ambient Temperature |
5℃ ~ 60℃ |
| Response Time (at 5 Bar) |
30ms below |
| Lubrication |
Not required |
| Rated Voltage |
AC110V, 220V (50/60Hz), DC24V |
| Coil Insulation |
±10% |
|
| |
 |
| |
 |

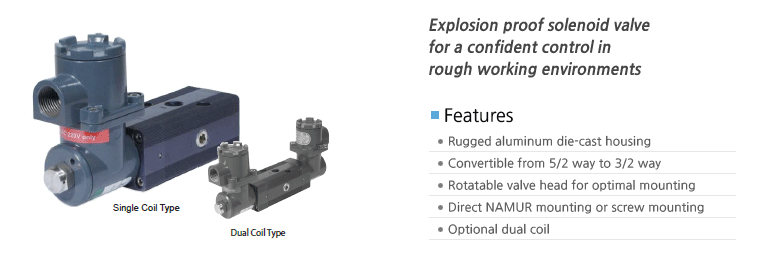

| |
| Specification |
| Model |
ESV |
| Operating Air Pressure |
1.5 ~ 10kgf/㎠ |
| Air Supply (Max.) |
15 kgf/㎠ |
| Operating Voltage : Current |
AC 110V : 55mA
AC 220V : 17mA
|
| Voltage Tolerance |
DC 24V : 138mA |
| Frequency |
±10% |
| Explosion Proof Class |
50Hz / 60Hz
Exd IIC T6 |
| Operating Ambient Temperature |
-20℃ - +60℃ |
| Flow Capacity (Cv) |
0.9 |
| Mounting Configuration |
NAMUR or screw interface |
| Pneumatic Connections |
PT 1/4 or NPT 1/4 |
| Electrical Connection |
PF 1/2 or NPT 1/2 |
| Coil Insulation Grade |
Class F |
| Duty Cycle |
100% |
| Weight |
0.9kg |
| Silencers |
2 pcs included as standard |
|

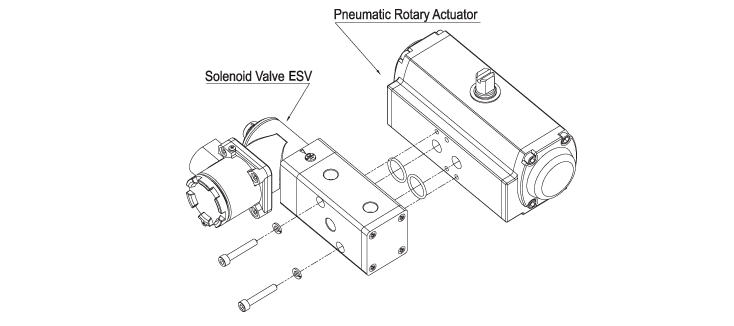

| |
| Mounting |
 |
| |
| Rotatable Valve Head |

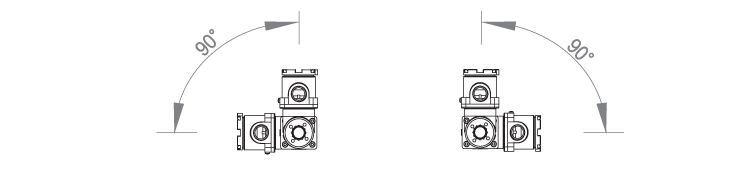

| The ESV valve head can be rotated by 90˚ to the right or to the left for an optimal mounting as shown below |
 |
| |

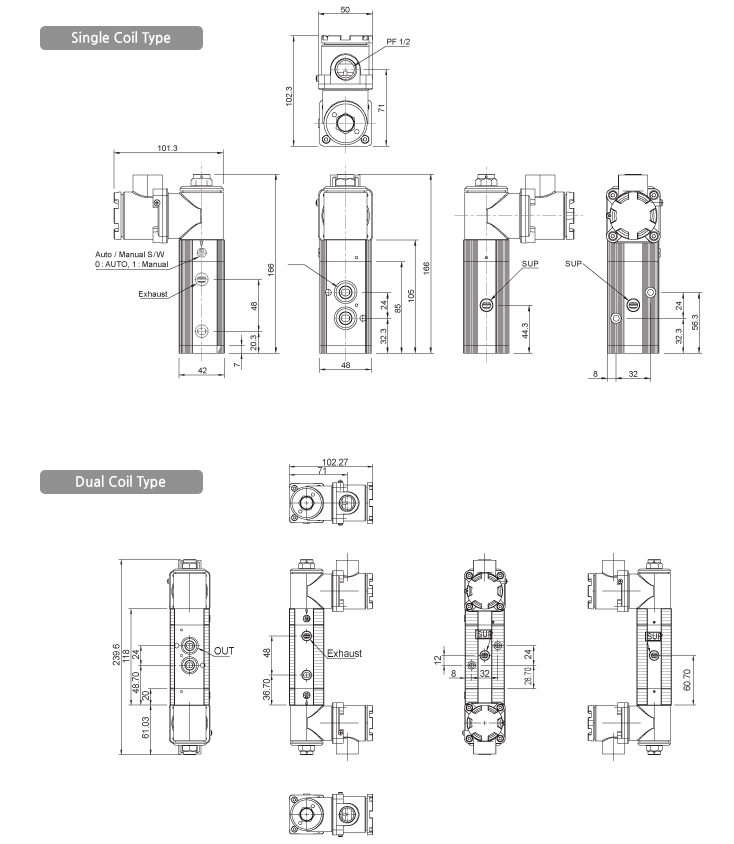

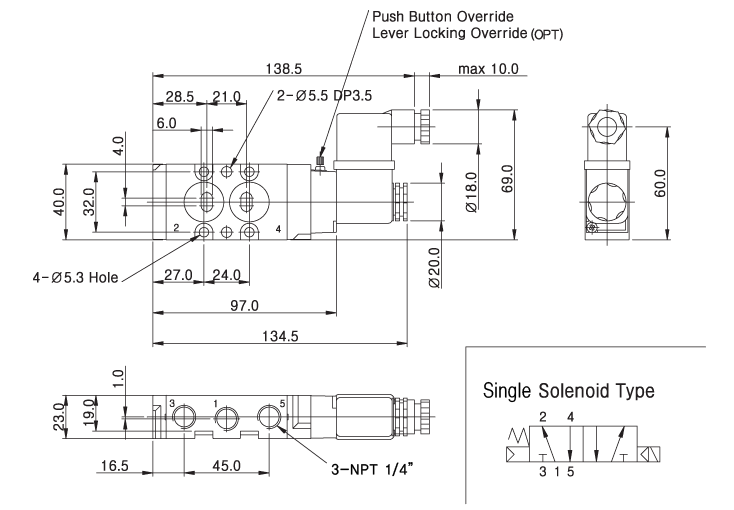

| Dimensions |
 |
