| PNEUMATIC ACTUATOR (DIAPHRAGM TYPE) |
 |
| |
| Model |

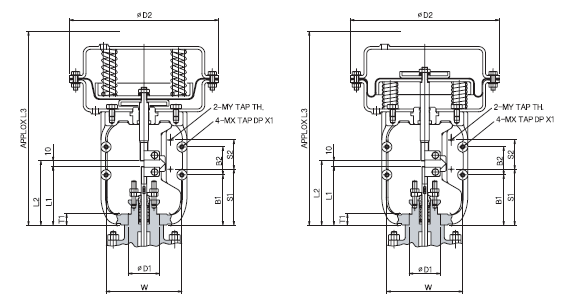

Engineering Data(mm) |
ØD1
0.1~0.3 |
ØD2 |
T1 |
L1 |
L2 |
L3 |
W |
B1 |
B2 |
S1 |
S2 |
| 220 |
56 |
220 |
20 |
105 |
115 |
290 |
120 |
85 |
50 |
100 |
36 |
| 270 |
56 |
270 |
20 |
105 |
115 |
345 |
136 |
90 |
50 |
90.5 |
62 |
| 350 |
65.5 |
350 |
20 |
125 |
135 |
420 |
160 |
110 |
50 |
107 |
85 |
| 470 |
80 |
470 |
24 |
145 |
155 |
525 |
235 |
130 |
50 |
127 |
100 |
|
| |
| lEngineering Data(mm) |
| Model |
Effective Diaphragm Area
Cm2 |
Torque |
Stroke
mm |
Actuators Rod
Diameter |
MY X TH |
MX X DPXX |
Direct
kgf |
Reverse
kgf |
| 220 |
155 |
190 |
190 |
20 |
Ø16XM14X1.5P |
M4X0.7P |
M8XDP20 |
| 270 |
198 |
320 |
320 |
25 |
Ø16XM14X1.5P |
M4X0.7P |
M8XDP20 |
| 350 |
268 |
550 |
550 |
40(30) |
Ø25XM20X1.5P |
M4X0.7P |
M8XDP20 |
| 470 |
370 |
1100 |
1100 |
50.75 |
Ø30XM24X1.5P |
M4X0.7P |
M8XDP20 |
|
| |
| Operating Spring Range |
1.0bar ~ 2.4bar / 0.8bar ~ 2.4bar |
Main Part Material |
Diaphragm / EPDM |
| Supply Pressure |
Reverse Act. 1.0bar ~ 3ba |
Spring / SWOCS-V |
| Direct Act. 1.0bar ~3bar |
Yoke / FCD45 |
| Operating Speed |
One Cycle(open to close) 3 to 15 sec |
Diaphragm Casing / C.Steel plate |
| Signal Connection |
PT 1/4" |
DiaphAgm Rod 304SS |
| Ambient Temperature |
-40℃ ~ 93℃ |
Color |
HJ Blue |
|
