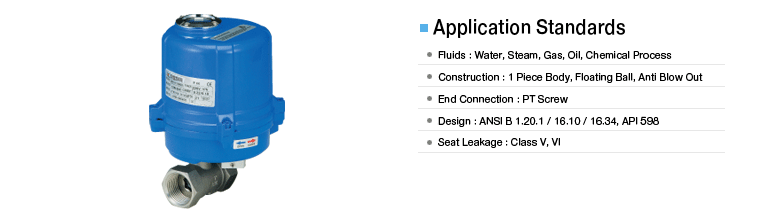

| 스크류 1PC 볼 밸브 |
| |
 |
| |
 Specification |
| Valve Size |
10A(3/8") ~ 50A(2") |
| Actuator Model |
TVTM0020 / TVTM0040 |
| Actuator Type |
Electric |
| Electrical |
AC110V, 220V, 380V |
| Output Torque |
25Nm / 40Nm |
| Operating time |
11/50Hz, 14/50Hz |
| Operating Type |
On-Off |
| Rotating Angle |
90˚ ±5˚ |
| Fluid Temp |
-20℃ ~ +70℃ |
| Rating |
1000 PSI |
| Material |
Body(A351 CF8, 8M) / Ball(A182 F304, 316) / Seat(PTFE, RTFE, PEEK) |
|
| |
| Wiring Diagram |
 |
| |

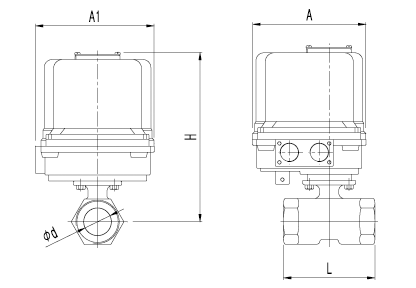

| Dimension |
| Unit :mm |
| Model |
Size |
Motor |
H
(APPROX) |
L |
Ød |
| mm |
Inch |
A |
A1 |
| TVTM0020-8S3 |
8A |
1/4" |
89.4 |
109.7 |
173.5 |
60 |
10 |
| TVTM0020-10S3 |
10A |
3/8" |
89.4 |
109.7 |
173.5 |
60 |
12.5 |
| TVTM0020-15S3 |
15A |
1/2" |
89.4 |
109.7 |
173.5 |
65 |
15 |
| TVTM0020-20S3 |
20A |
3/4" |
89.4 |
109.7 |
173.5 |
75 |
20 |
| TVTM0020-25S3 |
25A |
1" |
89.4 |
109.7 |
216 |
85 |
25 |
| TVTM0040-32S3 |
32A |
1-1/4" |
113.5 |
121.8 |
227 |
101 |
32 |
| TVTM0040-40S3 |
40A |
1-1/2" |
113.5 |
121.8 |
231 |
110 |
38 |
| TVTM0080-50S3 |
50A |
2" |
160 |
121 |
218 |
130 |
50 |
|
|
|
