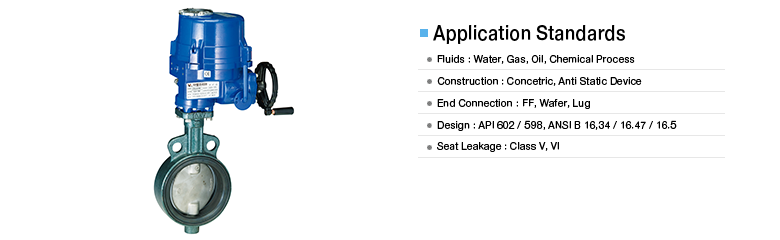

| 버터 플라이 밸브 |
| |
 |
| |
 Specification |
| Valve Size |
40A ~ 1000A |
| Actuator Model |
TVTM0040 ~ TVTM3000 |
| Actuator Type |
Electric |
| Electrical |
AC110V 220V, AC380V 440V |
| Rotating Angle |
90˚ ±5˚ |
| Operating Type |
ON/OFF, MODULATING (Except for TVTM0040) |
| Fluid Temp |
-20℃ ~ ±70℃ |
| Rating |
ANSI150# |
| Body Material |
Body(A216 WCB, A351 CF8) / Disc(A351 CF8, CF8M) / Seat(EPDM, VITON) |
|
| |
| Wiring Diagram |
 |
| |

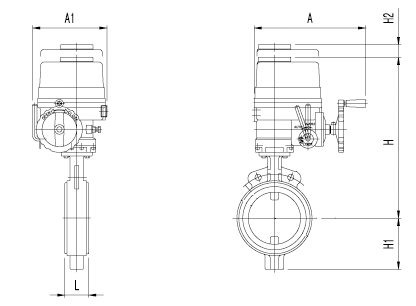

| Dimension |
| Unit :mm |
| Model |
Size |
Actuator |
H
(APPROX.) |
H1 |
H2 |
L |
| A |
A1 |
| TVTM0040-40BF |
40A |
1-1/2" |
113.5 |
121.8 |
263 |
58 |
- |
41 |
| TVTM0040-50BF |
50A |
2" |
113.5 |
121.8 |
270 |
65 |
- |
43 |
| TVTM0080-65BF |
65A |
2-1/2" |
160 |
121 |
268 |
71 |
40 |
46 |
| TVTM0080-80BF |
80A |
3" |
160 |
121 |
278 |
83 |
40 |
46 |
| TVTM0080-100BF |
100A |
4" |
160 |
121 |
291 |
100 |
40 |
52 |
| TVTM0100-125BF |
125A |
5" |
258 |
172 |
433 |
110 |
125 |
56 |
| TVTM0160-150BF |
150A |
6" |
338 |
229 |
489 |
130 |
140 |
56 |
| TVTM0240-200BF |
200A |
8" |
338 |
229 |
552 |
163 |
140 |
60 |
| TVTM0350-250BF |
250A |
10" |
357 |
244 |
608 |
227 |
170 |
68 |
| TVTM0500-300BF |
300A |
12" |
357 |
244 |
660 |
252 |
170 |
78 |
| TVTM0800-350BF |
350A |
14" |
380 |
287 |
669 |
272 |
170 |
78 |
| TVTM1100-400BF |
400A |
16" |
380 |
287 |
713 |
343 |
170 |
102 |
| TVTM2000-450BF |
450A |
18" |
440 |
375 |
836 |
366 |
225 |
114 |
| TVTM2000-500BF |
500A |
20" |
440 |
375 |
900 |
421 |
225 |
127 |
| TVTM3000-600BF |
600A |
24" |
440 |
375 |
985 |
493 |
225 |
154 |
|
|
|
