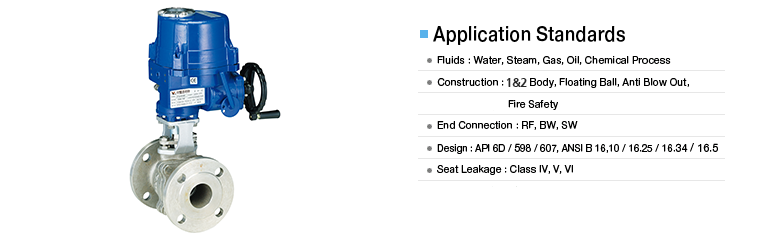

| 플랜지 볼 밸브 |
| |
 |
| |
 Specification |
| Valve Size |
15A(1/2") ~ 350A(14") |
| Actuator Model |
TVTM0040 ~ TVTM3000 |
| Actuator Type |
Electric |
| Electrical |
AC110V 220V, AC380V 440V |
| Rotating Angle |
90˚ ±5˚ |
| Operating Type |
On / Off, Modulating (Except for TVTM0040) |
| Fluid Temp |
-20℃ ~ 70℃ |
| Rating |
JIS 10K & 20K & 30K / ANSI 150# & 300# & 600# |
| Material |
Body(SCPH2 / SCS13 / SCS14 / SCS16) / (A216-WCB / A351-CF8 / A351-CF8M / A351-CF3M)
Ball(SCS13 / SCS14 / SCS16) / (A351-CF8 / A351-CF8M / A351-CF3M)
Seat(PTFE, CARBON, PEEK, METAL) |
|
| |
| Wiring Diagram |
 |
| |

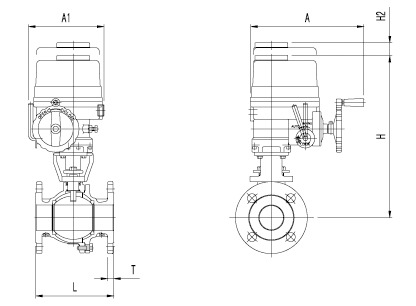

| Dimension |
| Unit :mm |
| Model |
Size |
Actuator |
H
(APPROX.) |
H2 |
L±1.6 |
| mm |
Inch |
A |
A1 |
| TVTM0040-15F |
15A |
1/2" |
113.5 |
121.8 |
233 |
- |
108 |
| TVTM0040-20F |
20A |
3/4" |
113.5 |
121.8 |
236 |
- |
117 |
| TVTM0040-25F |
25A |
1" |
113.5 |
121.8 |
245 |
- |
127 |
| TVTM0040-32F |
32A |
1-1/4" |
113.5 |
121.8 |
248 |
- |
140 |
| TVTM0080-40F |
40A |
1-1/2" |
160 |
121 |
258 |
40 |
165 |
| TVTM0080-50F |
50A |
2" |
160 |
121 |
256 |
40 |
178 |
| TVTM0160-65F |
65A |
2-1/2" |
338 |
229 |
406 |
140 |
190 |
| TVTM0160-80F |
80A |
3" |
338 |
229 |
482 |
140 |
203 |
| TVTM0350-100F |
100A |
4" |
357 |
244 |
492 |
170 |
229 |
| TVTM0500-125F |
125A |
5" |
357 |
244 |
547 |
170 |
356 |
| TVTM0800-150F |
150A |
6" |
380 |
287 |
543 |
170 |
397 |
| TVTM1100-200F |
200A |
8" |
380 |
287 |
645 |
170 |
457 |
| TVTM2000-250F |
250A |
10" |
440 |
375 |
813 |
225 |
533 |
| TVTM2000-300F |
300A |
12" |
440 |
375 |
875 |
225 |
610 |
| TVTM3000-350F |
350A |
14" |
440 |
375 |
951 |
225 |
686 |
|
|
|
