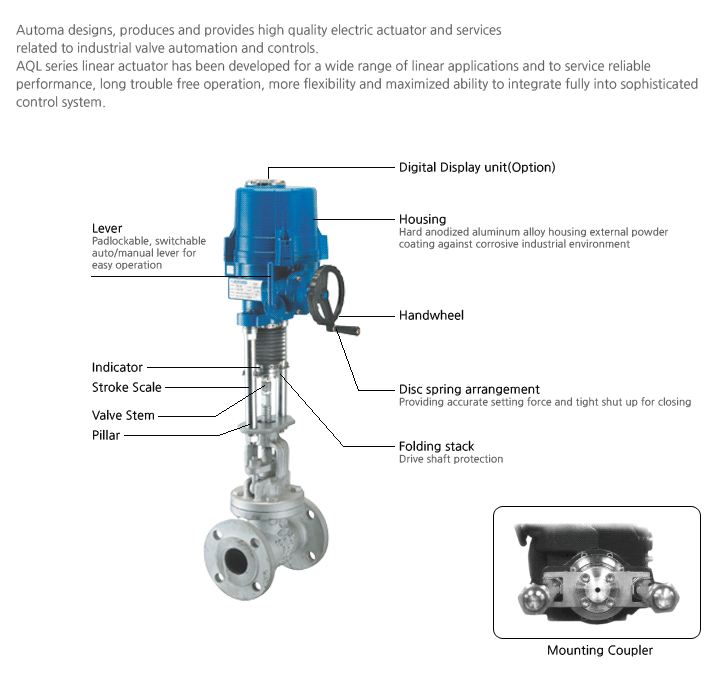

 Technical Information |
| Model |
Max.
Force |
Max.
Stroke |
Speed
50/60Hz |
Rated Current(A) |
Valve
Stem
Threads |
PCD on
Flange |
Pillar
Threads |
Weight |
| 50/60Hz |
| KN |
mm |
mm/sec |
1 Phase |
3 Phase |
DC |
mm |
mm |
|
kg |
| 110V |
220V |
380V |
440V |
24V |
| TVQL04 |
4 |
40 |
0.7/0.9 |
0.45/0.44 |
0.26/0.25 |
0.30/0.31 |
0.28/0.40 |
3.00 |
Max. M20 |
100 |
M16 |
7 |
| TVQL06 |
6 |
60 |
0.7/0.9 |
0.49/0.48 |
0.29/0.28 |
0.32/0.33 |
0.30/0.42 |
3.50 |
Max. M20 |
100 |
M16 |
8 |
| TVQL08 |
8 |
50 |
0.9/1.1 |
0.92/0.88 |
0.48/0.46 |
0.18/0.17 |
0.17/0.16 |
2.90 |
Max. M20 |
100 |
M16 |
15 |
| TVQL10 |
10 |
50 |
0.9/1.1 |
0.95/0.91 |
0.50/0.48 |
0.19/0.18 |
0.18/0.17 |
3.20 |
Max. M20 |
100 |
M16 |
16 |
| TVQL12 |
12 |
50 |
0.9/1.1 |
0.98/0.94 |
0.52/0.50 |
0.20/0.19 |
0.19/0.18 |
3.50 |
Max. M20 |
100 |
M16 |
16 |
| TVQL20 |
20 |
100 |
0.9/1.1 |
1.75/1.68 |
0.93/0.89 |
0.30/0.30 |
0.32/0.31 |
6.00 |
Max. M24 |
165 |
M20 |
20 |
| TVQL25 |
25 |
100 |
0.9/1.1 |
1.80/1.72 |
0.95/0.92 |
0.32/0.32 |
0.34/0.33 |
7.00 |
Max. M24 |
165 |
M20 |
21 |
|

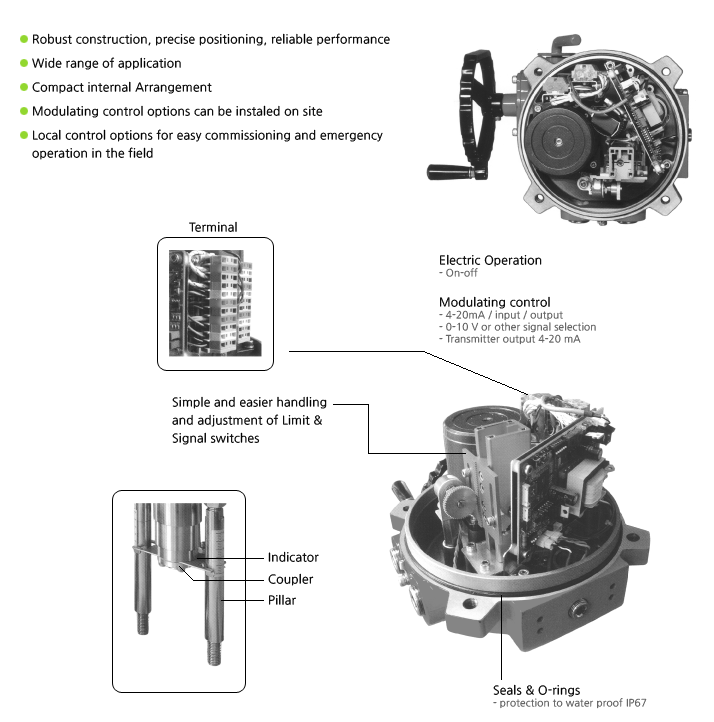

| |
| Standard Specification |
| Manual Override |
Handwheel with switchable declutchable lever |
| Enclosure (EN60529) |
IP67 |
| Cable Entry |
2 x PF 3/4" TAP |
| Position Indication |
Scale on pillar pointed by indicator |
| Housing |
Aluminum alloy hard anodized for anti-corrosion |
| Painting |
Epoxy power coated |
| Ambient Temperature |
-20℃ ~ +70℃ |
| Operating Mode (EC34-1, 8) |
S2-Max. 30 Min / S4-50% ED, 800 c/h / S4-50% ED, 1200 c/h |
| Motor Protection |
Thermal Switch, Class F Insulation |
| Space Heater |
5W (110/220VAC) for anti condensation |
| Limit Switch |
1 each for open/close (SPDT 10A 250VAC rating) |
| Mounting Direction |
Any direction except for heading downward |
| Pillar Material |
Stainless steel, carbon steel with special surface treatment |
|
| |
| Options Available |
| Available Optional Control |
 |
| - Auxiliary limit switch |
ALS |
1 each for open/close (SPDT 10A 250VAC rating)
(Except for TVQL04/TVQL06) |
| - Remote position control |
RPC |
4~20mA input/output, Selectable other signal |
| - Potentiometer |
PK |
0~1Kohm feedback |
| - Current transmitter |
CT |
4~20mA output |
| Local control |
| - Local control (1 Phase) |
LP4 |
Local control unit |
| - Local control (3 Phase) |
LM4 |
LP4 with reversing contactor and transformer |
| - Integral unit |
ICM |
Local controller with phase detector / discriminator |
| - Battery back up unit |
BP |
Fail Safe (Fail position either open/close) |
| - Explosion proof |
EX |
Exd IIB T4 |
|
| |

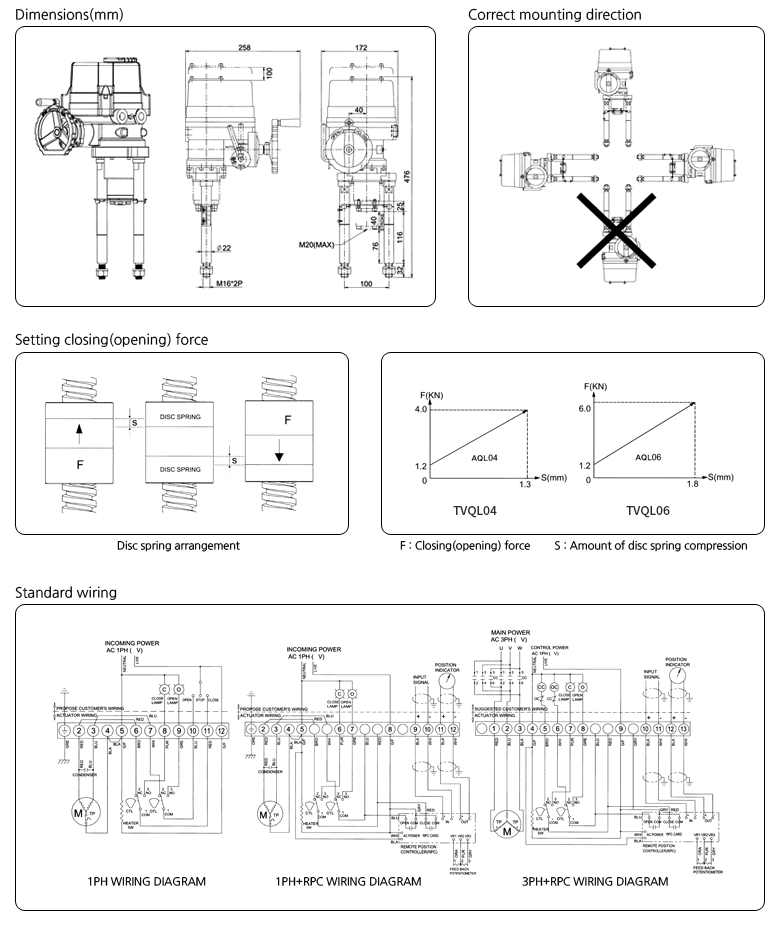

 ELECtrIC LINEAR ACTUATOR TVQL04/06 |
 |
| |

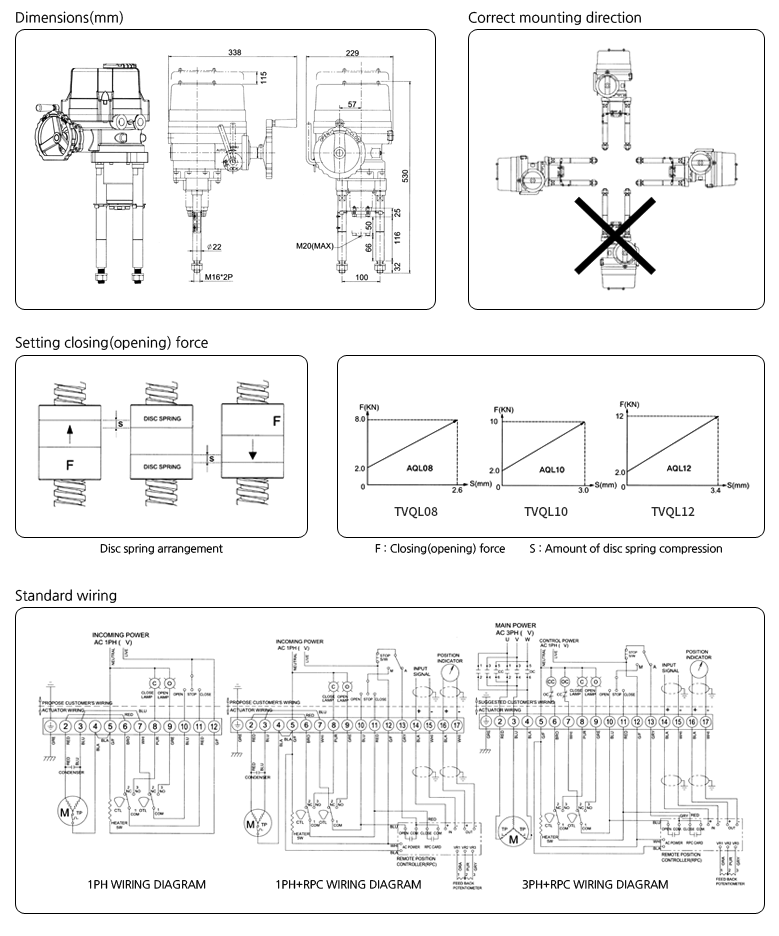

| ELECtrIC LINEAR ACTUATOR TVQL08/10/12 |
 |
| |

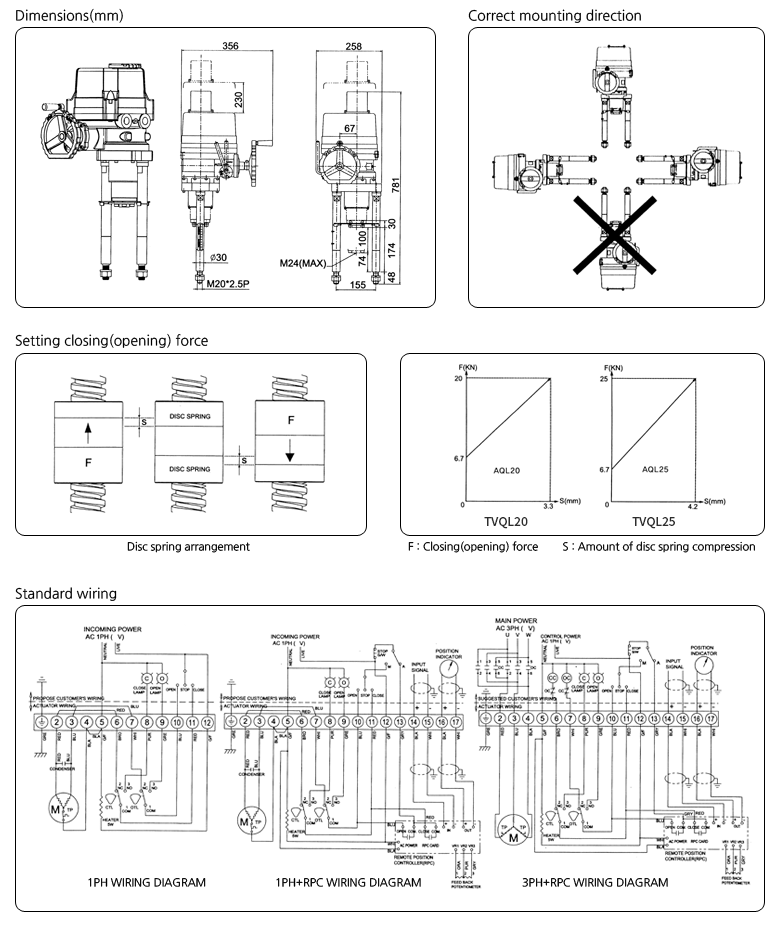

| ELECTRIC LINEAR ACTUATOR TVQL20/25 |
 |
