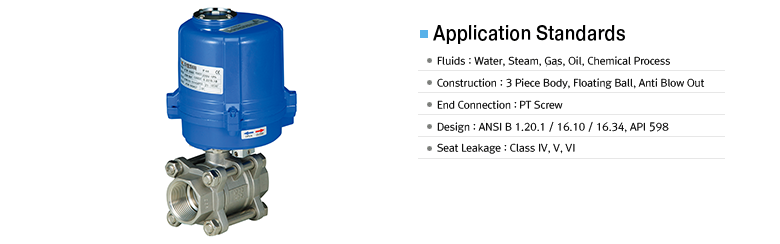

| 스크류 3PC 볼 밸브 |
| |
 |
| |
 Specification |
| Valve Size |
8A(1/4") ~ 50A(2") |
| Actuator Model |
TVTM0020 / 40 / 80 |
| Actuator Type |
Electric |
| Electrical |
AC110V, 220V, 380V |
| Output Torque |
20Nm / 40Nm / 80Nm |
| Operating time |
11/50Hz, 60Hz, 14/50Hz, 12/60Hz, 16/50Hz, 14/60Hz |
| Operating Type |
On-Off |
| Rotating Angle |
90˚ ±10˚ |
| Fluid Temp |
-10℃ ~ 70℃ |
| Rating |
1000PSI |
| Material |
Body(A351 CF8, 8M) / Ball(A182 F304, 316) / Seat(PTFE, RTFE, PEEK) |
|
| |
| Wiring Diagram |
 |
| |

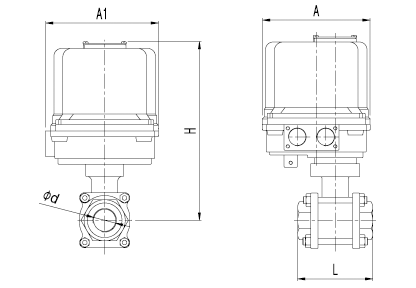

| Dimension |
| Unit :mm |
| Model |
Size |
A |
A1 |
H
(APPROX.) |
L |
Ød |
| TVTM0020-8S3 |
8A |
1/4" |
89.4 |
109.7 |
143 |
60 |
10 |
| TVTM0020-10S3 |
10A |
3/8" |
89.4 |
109.7 |
143 |
60 |
12 |
| TVTM0020-15S3 |
15A |
1/2" |
89.4 |
109.7 |
143 |
65 |
15 |
| TVTM0020-20S3 |
20A |
3/4" |
89.4 |
109.7 |
146 |
75 |
20 |
| TVTM0040-25S3 |
25A |
1" |
113.5 |
121.8 |
185 |
85 |
25 |
| TVTM0040-32S3 |
32A |
1-1/4" |
113.5 |
121.8 |
190 |
100 |
32 |
| TVTM0040-40S3 |
40A |
1-1/2" |
113.5 |
121.8 |
201 |
110 |
38 |
| TVTM0080-50S3 |
50A |
2" |
160 |
121 |
198 |
130 |
50 |
|
|
|
