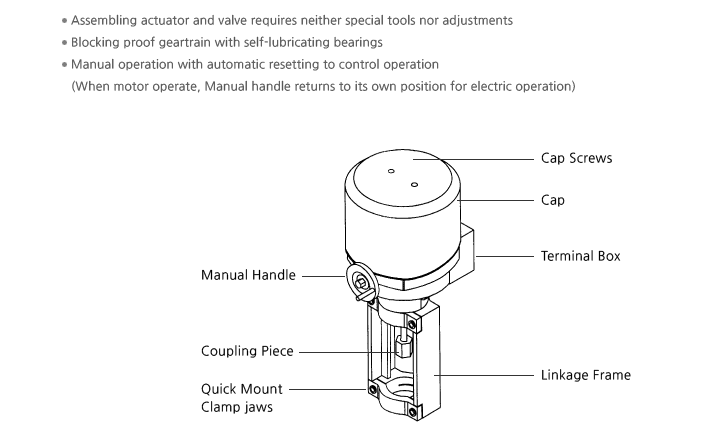

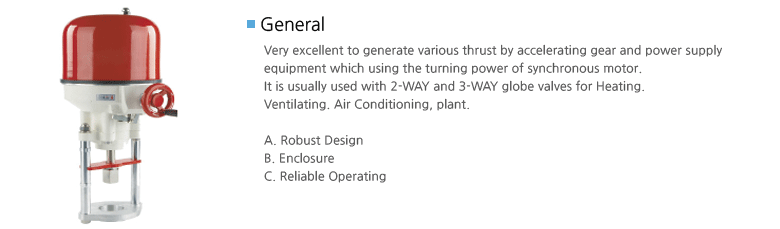

 Design Feature |
 |
| |

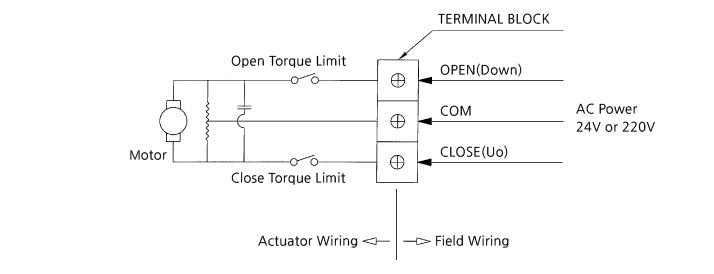

| Wiring Diagram |
 |
| |

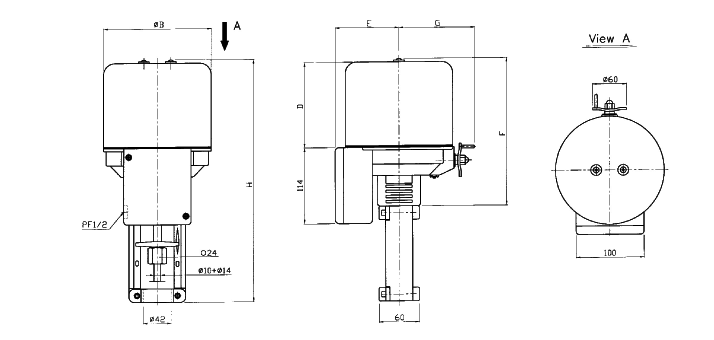

| Dimension |
 |
| |
| Dimension |
| Unit : Nm |
| Model |
ØB |
H |
E |
G |
D |
F |
| TVGL-10 |
168 |
208 |
62 |
62 |
81 |
111 |
| TVGL-20 |
140 |
295 |
90 |
125 |
106 |
185 |
| TVGL-35 |
140 |
330 |
90 |
125 |
130 |
185 |
| TVGL-55 |
160 |
355 |
100 |
135 |
125 |
215 |
| TVGL-100 |
180 |
585 |
100 |
170 |
195 |
330 |
| TVGL-250 |
270 |
665 |
120 |
200 |
250 |
445 |
|

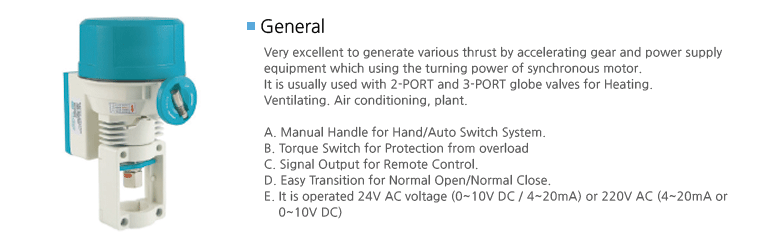

| |
| ELECTRIC LINEAR ACTUATOR (CONTROL) |
 |
| |
| Dimension |
| Model |
TVGL-10P |
TVGL-20P |
TVGL-35P |
TVGL-55P |
TVGL-100P |
TVGL-250P |
| Stroke (mm) |
20 |
40 |
70 |
80 |
| Output Torque (N) |
100 |
2000 |
3500 |
5500 |
10000 |
25000 |
| Operating Time (Sec) |
50 |
50 |
100 |
94 |
94 |
210 |
| Power Supply |
24V (220V) AC ±10% |
220V (110V) AC ±10% |
| Rated Torque (A) |
0.5(0.075) |
2.1(0.25) |
3(0.35) |
1 |
| Condensor (㎌) |
34(0.474) |
150(5) |
210(5) |
6 |
| Rated Current (VA) |
12(16.5) |
51(55) |
72(77) |
(220) |
| Control Signal |
(AC 24V : 0 ~ 10V / 4 ~ 20mA D.C) (AC220V : 0 ~ 10V or 4 ~ 20mA D.C) |
| Output Signal |
0 ~ 10V or 4 ~ 20mA D.C |
| Motor effic. |
S4 - 30% ED - 600c/hr |
| Ambient Temp. |
-15℃ ~ 50℃ |
| Housing protection |
IP 54 (EN60529) |
| Conduit Entries |
PF 1/2 X 2EA |
| Weight (Kg) |
2.4 |
3.2 |
3.3 |
10.4 |
11.6 |
21.3 |
|
| |

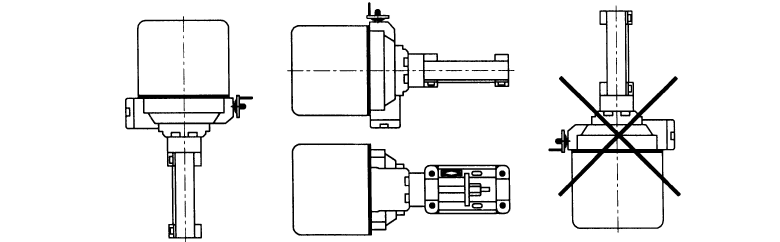

| Mounting and Installation Guide |
 |
| |

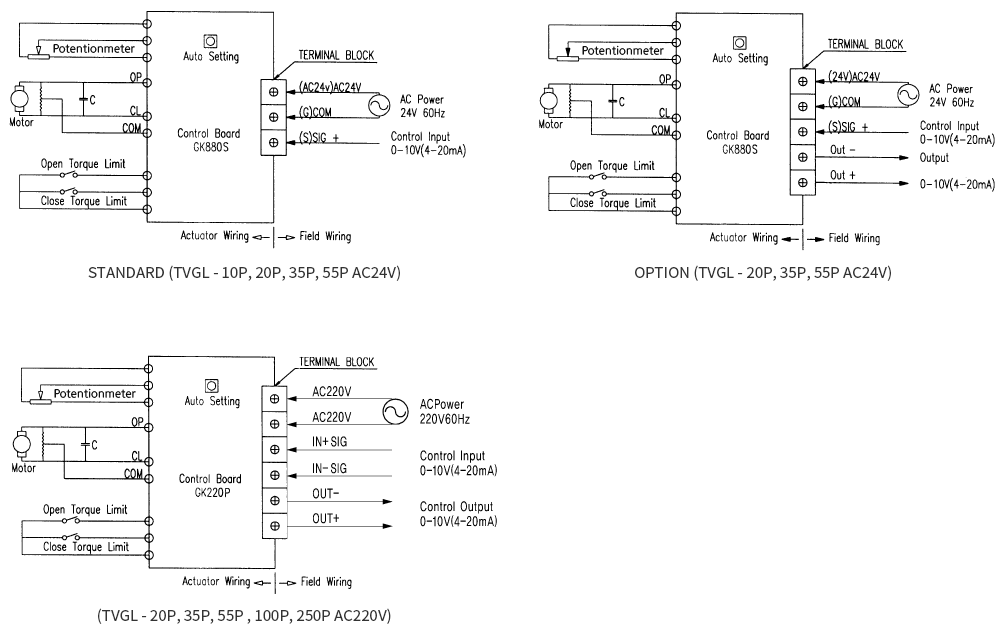

| Wiring Diagram |
 |
| |
| Technical Features |
 |
| |

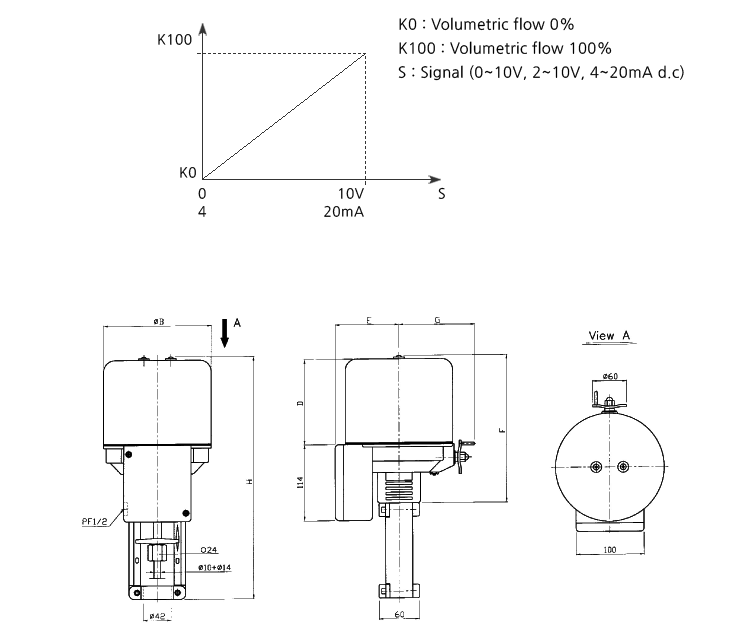

| Dimension |
| Model |
ØB |
H |
E |
G |
D |
F |
| TVGL-10 |
168 |
208 |
62 |
62 |
81 |
111 |
| TVGL-20 |
140 |
295 |
90 |
125 |
106 |
185 |
| TVGL-35 |
140 |
330 |
90 |
125 |
130 |
185 |
| TVGL-55 |
160 |
355 |
100 |
135 |
125 |
215 |
| TVGL-100 |
180 |
585 |
100 |
170 |
195 |
330 |
| TVGL-250 |
270 |
665 |
120 |
200 |
250 |
445 |
|
