 Specification |
| Item |
TVD32 |
TVD40 |
TVD50 |
TVD65 |
TVD80 |
TVD100 |
TVD125 |
TVD140 |
TVD160 |
TVD185 |
TVD200 |
TVD250 |
TVD300 |
| Operating Type |
Rack & Pinion |
Scotch - Yoke |
| Operating Media |
Compressed Dry Air |
| Operating Pressure |
4 ~ 7kg/cm2 |
| Rotating Angle |
90° +5°/-10° |
| Operating Temperature |
-20°C ~ 80°C(Option : -40°C ~ 200°C) |
| Weight(kg) |
0.3 |
0.5 |
1.4 |
2.3 |
3.9 |
6.7 |
11.3 |
16.4 |
23.7 |
38.1 |
45.5 |
65.8 |
78 |
|
| |

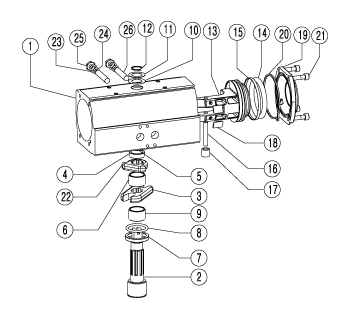

| Part and Material |
 |
|
| No. |
Part Name |
Material |
No. |
Part Name |
Material |
| 1 |
Body |
Aluminum Alloy |
14 |
Piston O-ring |
NBR |
| 2 |
Shaft |
Steel Alloy
(Nickel Plated) |
15 |
Piston Guide-ring |
Engineering Plastic |
| 3 |
Crank |
Steel Alloy |
16 |
Piston Pin |
Steel Alloy |
| 4 |
Bushing(Top) |
Engineering Plastic |
17 |
Piston Roller |
Steel Alloy |
| 5 |
Body O-ring(Top) |
NBR |
18 |
Piston Pad |
Engineering Plastic |
| 6 |
Shaft Roller(Top) |
Engineering Plastic |
19 |
Cover |
Aluminum Alloy |
| 7 |
Bushing(Bottom) |
Engineering Plastic |
20 |
Cover O-ring |
NBR |
| 8 |
Body O-ring(Bottom) |
NBR |
21 |
Cover Bolt |
Steel Alloy |
| 9 |
Shaft Roller(Bottom) |
Engineering Plastic |
22 |
Stopper |
Steel Alloy |
| 10 |
Body Washer(Bottom) |
Engineering Plastic |
23 |
Adjust Washer |
Stainless Steel |
| 11 |
Body Washer(Top) |
Stainless Steel |
24 |
Adjust O-ring |
NBR |
| 12 |
Body Snap-ring |
Stainless Steel |
25 |
Adjust Nut |
Stainless Steel |
| 13 |
Piston |
Aluminum Alloy |
26 |
Adjust Bolt |
Steel Alloy |
|
|
| |
| Torque Table |
| Unit : Nm |
| Model |
Angle |
Supply Air |
| 4bar |
5bar |
6bar |
| Close |
Open |
Close |
Open |
Close |
Open |
| TVD32 |
0° |
4.5 |
4.5 |
6.0 |
6.0 |
7.3 |
7.3 |
| 45° |
4.5 |
4.5 |
6.0 |
6.0 |
7.3 |
7.3 |
| 90° |
4.5 |
4.5 |
6.0 |
6.0 |
7.3 |
7.3 |
| TVD40 |
0° |
7.0 |
7.0 |
9.0 |
9.0 |
11.0 |
11.0 |
| 45° |
7.0 |
7.0 |
9.0 |
9.0 |
11.0 |
11.0 |
| 90° |
7.0 |
7.0 |
9.0 |
9.0 |
11.0 |
11.0 |
| TVD50 |
0° |
37.0 |
28.0 |
38.0 |
37.0 |
42.0 |
41.0 |
| 45° |
20.0 |
21.0 |
25.0 |
26.0 |
30.0 |
31.0 |
| 90° |
33.0 |
38.0 |
39.0 |
40.0 |
50.0 |
52.0 |
| TVD65 |
0° |
85.0 |
78.0 |
105.0 |
95.0 |
131.0 |
116.0 |
| 45° |
45.0 |
49.0 |
57.0 |
63.0 |
68.0 |
73.0 |
| 90° |
72.0 |
71.0 |
88.0 |
93.0 |
107.0 |
107.0 |
| TVD80 |
0° |
162.0 |
143.0 |
209.0 |
183.0 |
261.0 |
210.0 |
| 45° |
84.0 |
92.0 |
112.0 |
121.0 |
130.0 |
144.0 |
| 90° |
130.0 |
133.0 |
171.0 |
156.0 |
198.0 |
209.0 |
| TVD100 |
0° |
265.0 |
247.0 |
332.0 |
292.0 |
393.0 |
368.0 |
| 45° |
147.0 |
165.0 |
185.0 |
196.0 |
237.0 |
250.0 |
| 90° |
231.0 |
237.0 |
297.0 |
301.0 |
348.0 |
363.0 |
| TVD125 |
0° |
576.0 |
551.0 |
725.0 |
678.0 |
886.9 |
793.9 |
| 45° |
339.0 |
360.0 |
425.0 |
443.0 |
513.0 |
531.0 |
| 90° |
510.0 |
491.0 |
635.0 |
613.0 |
750.0 |
732.0 |
| TVD140 |
0° |
829.9 |
753.9 |
1104.9 |
922.9 |
1310.9 |
1096.9 |
| 45° |
450.0 |
455.0 |
579.0 |
582.0 |
691.0 |
668.0 |
| 90° |
689.0 |
720.0 |
862.9 |
879.9 |
1054.9 |
969.8 |
| TVD160 |
0° |
1146.9 |
1061.9 |
1484.9 |
1311.9 |
1799.9 |
1599.9 |
| 45° |
730.0 |
757.9 |
919.9 |
948.9 |
1109.9 |
1132.9 |
| 90° |
1169.9 |
1319.9 |
1447.9 |
1634.9 |
1749.9 |
2026.9 |
| TVD185 |
0° |
1840.0 |
1703.6 |
2382.2 |
2104.7 |
2887.5 |
2566.7 |
| 45° |
1122.3 |
1165.3 |
1414.4 |
1458.9 |
1706.5 |
1741.8 |
| 90° |
1720.5 |
1941.1 |
2129.3 |
2404.3 |
2573.4 |
2980.7 |
| TVD200 |
0° |
2799.8 |
2599.8 |
3299.8 |
3199.8 |
3919.7 |
3819.7 |
| 45° |
1459.9 |
1499.9 |
1919.9 |
1949.9 |
2299.8 |
2399.8 |
| 90° |
2149.9 |
2299.8 |
2799.8 |
2899.8 |
3349.8 |
3449.8 |
| TVD250 |
0° |
5500.0 |
3950.0 |
7100.0 |
4850.0 |
8480.0 |
5750.0 |
| 45° |
2550.0 |
2500.0 |
3200.0 |
3150.0 |
3800.0 |
3760.0 |
| 90° |
4180.0 |
4580.0 |
5240.0 |
5850.0 |
6180.0 |
7050.0 |
| TVD300 |
0° |
9615.0 |
6732.0 |
12019.0 |
8416.0 |
14422.0 |
10099.0 |
| 45° |
3960.0 |
3960.0 |
4950.0 |
4950.0 |
5940.0 |
5940.0 |
| 90° |
6732.0 |
9415.0 |
8416.0 |
12019.0 |
10099.0 |
14422.0 |
|
| |

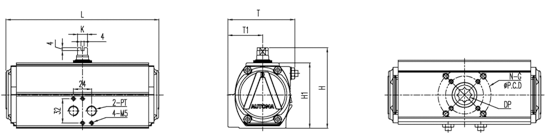

| Dimension |
|
|
| Model |
PT |
| AD32, AD40 |
PT 1/8 |
| AD50 ~ AD200 |
PT 1/4 |
| AD250 ~ (Choice) |
PT 1/4, 3/8, 1/2 |
|
| |

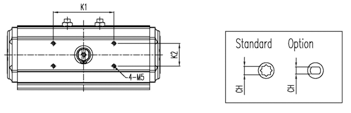

| Model |
K1 |
K2 |
| AD32 |
25.5 |
25.5 |
| AD40 |
50 |
25 |
| AD50 ~ AD160 |
80 |
30 |
| AD185 ~ |
130 |
30 |
|
|
|
| |
| Unit : mm |
| Model |
ISO |
ØP.C.D |
N-G |
K |
L |
T |
T1 |
H |
H1 |
CH(Sta) |
CH(Opt) |
DP |
| TVD32 |
F03 |
36 |
4-M5 |
7 |
66 |
45 |
25 |
55 |
45 |
9x9 |
- |
9 |
| TVD40 |
F03/F05 |
36/50 |
4-M5/M6 |
9 |
97 |
63 |
32 |
75 |
55 |
9x9 |
- |
9 |
| TVD50 |
F03/F05/F07 |
36/50/70 |
4-M5/M6/M8 |
9 |
162 |
75 |
40 |
90 |
70 |
11x11 |
14x14 |
13 |
| |
9.7xØ15 |
14 |
| TVD65 |
F05/F07 |
50/70 |
4-M6/M8 |
13 |
202 |
89 |
46 |
107 |
87 |
14x14 |
11.7xØ17 |
17 |
| |
9.7xØ15 |
14 |
| TVD80 |
F07 |
70 |
4-M8 |
13 |
253 |
101 |
49.5 |
126 |
106 |
17x17 |
14.7xØ19 |
19 |
| TVD100 |
F07/F10 |
70/102 |
4-M8/M10 |
19 |
311 |
129 |
61.5 |
148 |
128 |
22x22 |
17.7xØ22 |
26 |
| TVD125 |
F07/F10 |
70/102 |
4-M8/M10 |
19 |
390 |
151 |
71.5 |
174 |
154 |
22x22 |
- |
26 |
| TVD140 |
F10/F12 |
102/125 |
4-M10/M12 |
24 |
431 |
164 |
77 |
192 |
172 |
27x27 |
22x22 |
30 |
| TVD160 |
F14 |
140 |
4-M16 |
24 |
506 |
188 |
89 |
216 |
196 |
36x36 |
27x27 |
30 |
| TVD185 |
F14 |
140 |
4-M16 |
30 |
581 |
217 |
103 |
254 |
224 |
36x36 |
- |
30 |
| TVD200 |
F16 |
165 |
4-M20 |
36 |
605 |
231 |
115 |
284 |
254 |
46x46 |
36x36 |
50 |
| TVD250 |
F16 |
165 |
4-M20 |
36 |
755 |
301 |
152 |
335 |
305 |
46x46 |
- |
60 |
| TVD300 |
F16/F25 |
165/254 |
4-M20/8-M16 |
36 |
900 |
360 |
170 |
408 |
378 |
55x55 |
- |
60 |
|
