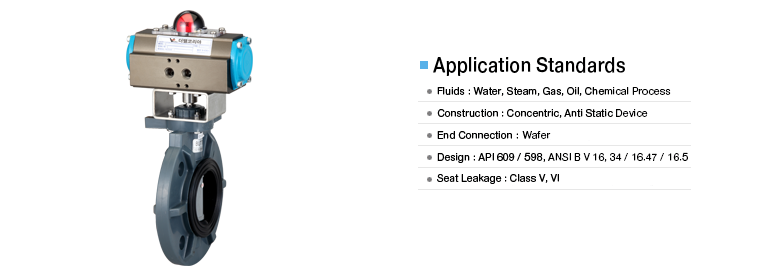

| 플라스틱 버터 플라이 밸브 |
| |
| |
 |
| |
 Specification |
| Valve Size |
50A(2') ~ 400A(16") |
| Actuator Model |
TVD50 ~ TVD160 |
| Actuator Type |
Pneumatic Double Acting(with Dry Air) |
| Operating Pressure |
4 ~ 7kg/㎠ |
| Rotating Angle |
90˚ ±5˚ |
| Fluid Temperature |
-10℃ ~ 140℃ |
| Rating |
ANSI 150# |
| Body Material |
PVC, PP, PPG, C-PVC, PVDF |
| Accessory |
Solenoid Valve, Limit Switch Box, Air filter Regulator, E/P Positioner |
|
| |
 |
| |

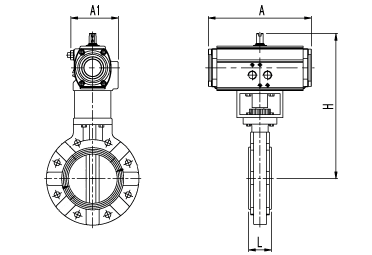

| Dimension |
| Unit : mm |
| Model |
Size |
A |
A1 |
H
(Approx) |
L |
| mm |
inch |
| TVD50-50BF |
50A |
2" |
162 |
75 |
284 |
42 |
| TVD50-65BF |
65A |
2-1/2" |
162 |
75 |
298 |
46 |
| TVD65-80BF |
80A |
3" |
202 |
89 |
338 |
46 |
| TVD65-100BF |
100A |
4" |
202 |
89 |
363 |
56 |
| TVD80-125BF |
125A |
5" |
262 |
101 |
411 |
66 |
| TVD80-150BF |
150A |
6" |
262 |
101 |
438 |
73 |
| TVD100-200BF |
200A |
8" |
311 |
129 |
558 |
94 |
| TVD100-250BF |
250A |
10" |
311 |
129 |
660 |
111 |
| TVD125-300BF |
300A |
12" |
390 |
151 |
747 |
131 |
| TVD140-350BF |
350A |
14" |
431 |
164 |
771 |
134 |
| TVD160-400BF |
400A |
16" |
506 |
189 |
932 |
174 |
|
|
|
