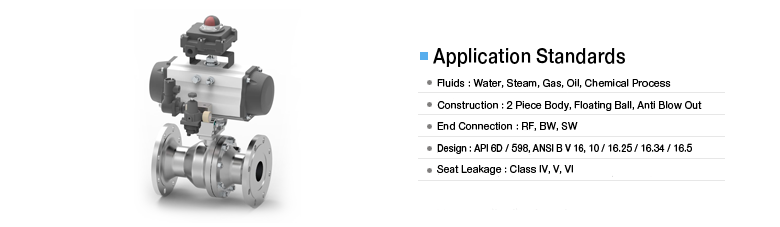

 Specification |
| Valve Size |
15A(1/2") ~ 300A(12") |
| Actuator Model |
TVD Series |
| Actuator Type |
Pneumatic Double / Single Acting (with Dry Air) |
| Operating Pressure |
4 ~ 7kg/㎠ |
| Rotating Angle |
90˚ ±5˚ |
| Fluid Temperature |
-10℃ ~ 150℃ |
| Rating |
JIS 10K (20K) / ANSI 150# (300#) |
| Material |
BODY : SCPH2, SCS13, SCS14 (COATING : 304/316+Ni Cr Fusing, TCC, PVD(CVD), Hcr)
BALL : SCPH2, SCS13, SCS14 (COATING : 304/316+Ni Cr Fusing, TCC, PVD(CVD), Hcr)
SEAT : METAL (COATING : 304/316+Ni Cr Fusing, TCC, PVD(CVD), Hcr) |
| Accessory |
Solenoid Valve, Limit Switch Box, Air filter Regulator, E/P Positioner |
| REMARK |
SPECIAL VALVE는 유체 특성상 마모가 심한 라인의 적용될수 있게 설계되었으며,
유체 WETED PART는 Ni Cr Fusing, TCC, PVD(CVD), Hcr Coating을 적용함 |
|
| |
 |
| |

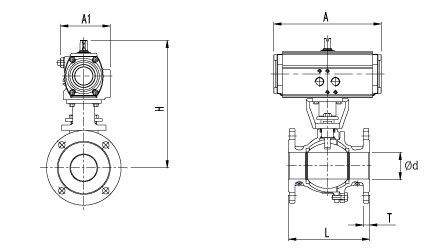

| Dimension |
| Unit : mm |
| Model |
Size |
A |
A1 |
H
(Approx) |
L
(10K / 150#) |
L
(20K / 300#) |
Ød |
| mm |
inch |
| TVD-80A |
80A |
3" |
202 |
89 |
249 |
203 |
283 |
40 |
| TVD-100A |
100A |
4" |
262 |
101 |
279 |
229 |
305 |
50 |
| TVD-125A |
125A |
5" |
262 |
101 |
319 |
356 |
381 |
65 |
| TVD-150A |
150A |
6" |
311 |
129 |
357 |
394 |
403 |
80 |
| TVD-200A |
200A |
8" |
390 |
151 |
415 |
457 |
502 |
100 |
| TVD-250A |
250A |
10" |
431 |
164 |
480 |
533 |
568 |
125 |
| TVD-300A |
300A |
12" |
506 |
189 |
589 |
610 |
648 |
150 |
| TVD-350A |
350A |
14" |
605 |
231 |
720 |
686 |
762 |
200 |
|
|
|
