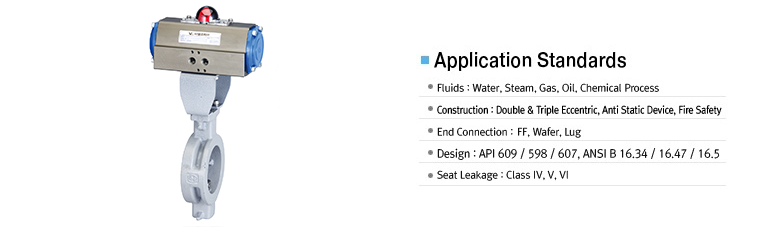

| 하이퍼포먼스 버터 플라이 밸브 |
| |
| |
 |
| |
 Specification |
| Valve Size |
50A(2 ") ~ 600A(24") |
| Actuator Model |
ATBB-Series |
| Actuator Type |
Pneumatic Double Acting / Single Acting / Spring Return(with Dry Air) |
| Operating Media |
Compressed Dry Air |
| Operating Pressure |
4 ~ 7kg/㎠ |
| Fluid Temperature |
-10℃ ~ 110℃ |
| 규격 / Rating |
KS(10K~20K),ANSI( 150# ~300#),DIN(PN 10 ~ 40) |
| Body Material |
FCD450, SCPH2, SCS13, SCS14 |
| Disc Material |
SCS13, SCS14 |
| Seat Material |
RTFE, PTFE, MTFE, 316SS |
| Accessory |
Solenoid Valve, Limit Switch Box, Air Filter & Regulator, Speed Controller, E/P Positioner, Declutchable Gear Box |
|
| |
 |
| |

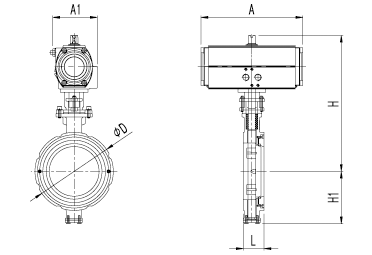

| Dimension |
| Unit : mm |
| Model |
Size |
Actuator |
H
(Approx.) |
H1 |
L±0.5 |
End Connection |
| mm |
inch |
A |
A1 |
ØD |
| TVD50-40HBF |
40A |
1-1/2" |
162 |
75 |
254 |
73 |
43 |
86 |
| TVD50-50HBF |
50A |
2" |
162 |
75 |
261 |
81 |
43 |
100 |
| TVD65-65HBF |
65A |
2-1/2" |
202 |
89 |
289 |
83 |
46 |
123 |
| TVD65-80HBF |
80A |
3" |
202 |
89 |
303 |
87 |
46 |
132 |
| TVD65-100HBF |
100A |
4" |
202 |
89 |
310 |
111 |
52 |
157 |
| TVD80-125HBF |
125A |
5" |
262 |
101 |
369 |
121 |
57 |
185 |
| TVD80-150HBF |
150A |
6" |
262 |
101 |
390 |
145 |
55/57 |
220 |
| TVD100-200HBF |
200A |
8" |
311 |
129 |
467 |
180 |
60 |
277 |
| TVD125-250HBF |
250A |
10" |
390 |
151 |
531 |
220 |
67/76 |
337 |
| TVD125-300HBF |
300A |
12" |
390 |
151 |
579 |
279 |
78 |
380 |
| TVD140-350HBF |
350A |
14" |
431 |
164 |
625 |
309 |
93 |
410 |
| TVD160-400HBF |
400A |
16" |
506 |
189 |
680 |
340 |
102 |
475 |
| TVD160-450HBF |
450A |
18" |
506 |
189 |
720 |
370 |
115 |
534 |
| TVD200-500HBF |
500A |
20" |
605 |
231 |
950 |
402 |
127 |
675 |
| TVD200-600HBF |
600A |
24" |
605 |
231 |
1050 |
472 |
154 |
795 |
|
|
|
