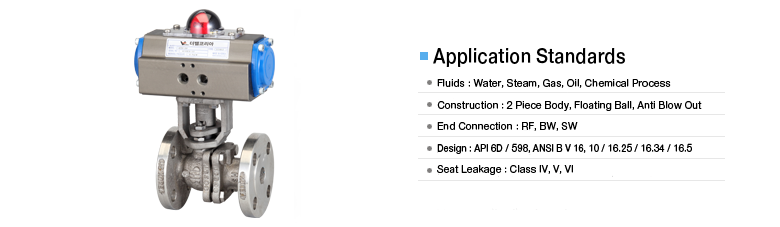

| 플랜지 볼 밸브 |
| |
|
| |
 |
| |
 Specification |
| Valve Size |
15A(1/2") ~ 300A(12") |
| Actuator Model |
TVD50/TVD200 |
| Actuator Type |
Pneumatic Double Acting(with Dry Air) |
| Operating Pressure |
4 ~ 7kg/㎠ |
| Rotating Angle |
90˚ ±5˚ |
| Fluid Temperature |
-10℃ ~ 150℃ |
| Rating |
ANSI 150# (300#, 600#) |
| Body Material |
Body(A216 WCB, A351 CF8, 8M) / Ball(A182 F304,316) / Seat(PTFE,RTFE,PEEK,Metal) |
| Accessory |
Solenoid Valve, Limit Switch Box, Air filter Regulator, E/P Positioner |
|
| |
 |
| |

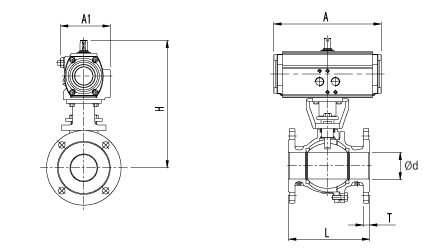

| Dimension |
| Unit : mm |
| Model |
Size |
A |
A1 |
H
(Approx) |
L |
| mm |
inch |
| TVD50-15F |
15A |
1/2" |
162 |
75 |
188 |
108 |
| TVD50-20F |
20A |
3/4" |
162 |
75 |
191 |
117 |
| TVD50-25F |
25A |
1" |
162 |
75 |
200 |
127 |
| TVD65-32F |
32A |
1-1/4" |
202 |
89 |
220 |
140 |
| TVD65-40F |
40A |
1-1/2" |
202 |
89 |
242 |
165 |
| TVD65-50F |
50A |
2" |
202 |
89 |
249 |
178 |
| TVD80-65F |
65A |
2-1/2" |
262 |
101 |
279 |
190 |
| TVD80-80F |
80A |
3" |
262 |
101 |
319 |
203 |
| TVD100-100F |
100A |
4" |
311 |
129 |
357 |
229 |
| TVD125-125F |
125A |
5" |
390 |
151 |
415 |
356 |
| TVD140-150F |
150A |
6" |
431 |
164 |
480 |
394 |
| TVD160-200F |
200A |
8" |
506 |
189 |
589 |
457 |
| TVD200-250F |
250A |
10" |
605 |
231 |
720 |
533 |
|
|
|
