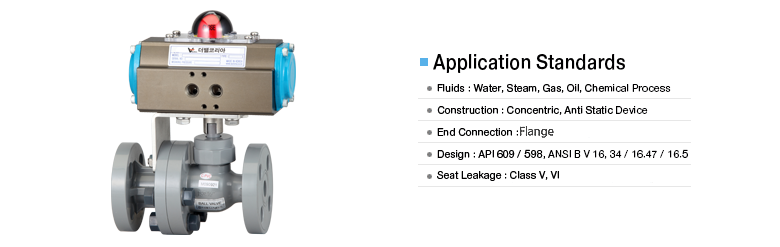

| 플라스틱 플랜지 볼 밸브 |
| |
| |
 |
| |
 Specification |
| Valve Size |
15A(1/2") ~ 150A(6")
|
| Actuator Model |
TVD50 ~ TVD125 |
| Actuator Type |
Pneumatic Double Acting(with Dry Air) |
| Operating Pressure |
4 ~ 7kg/㎠ |
| Rotating Angle |
90˚ ±5˚ |
| Fluid Temperature |
-10℃ ~ 140℃ |
| Rating |
ANSI 150# |
| Material |
PVC, PP, PPG, C-PVC, PVDF |
| Accessory |
Solenoid Valve, Limit Switch Box, Air filter Regulator, E/P Positioner |
|
| |
 |
| |

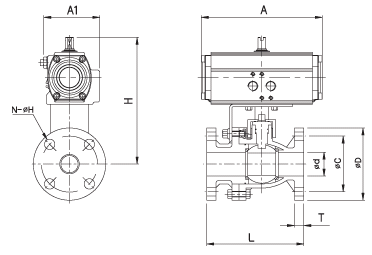

| Dimension |
| Unit : mm |
| Model |
Size |
A |
A1 |
H
(Approx) |
L |
| mm |
inch |
| TVD50-15F |
15A |
1/2" |
162 |
75 |
168 |
145 |
| TVD50-20F |
20A |
3/4" |
162 |
75 |
177 |
150 |
| TVD50-25F |
25A |
1" |
162 |
75 |
190 |
170 |
| TVD50-30F |
30A |
1-1/4" |
162 |
75 |
200 |
175 |
| TVD65-40F |
40A |
1-1/2" |
202 |
89 |
212 |
190 |
| TVD65-50F |
50A |
2" |
202 |
89 |
227 |
210 |
| TVD65-65F |
65A |
2-1/2" |
202 |
89 |
247 |
260 |
| TVD80-80F |
80A |
3" |
262 |
101 |
276 |
265 |
| TVD80-100F |
100A |
4" |
262 |
101 |
301 |
300 |
| TVD100-125F |
125A |
5" |
311 |
129 |
358 |
360 |
| TVD125-150F |
150A |
6" |
390 |
151 |
414 |
360 |
|
|
|
