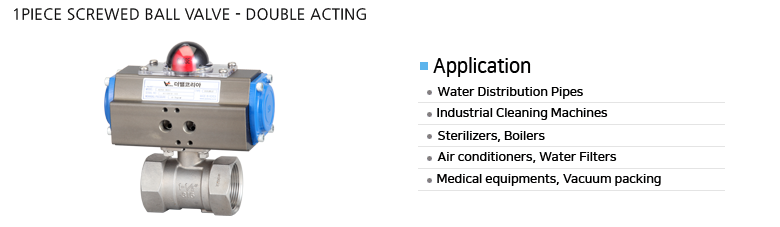

 Specification |
| This is subject to change. |
| Valve Size |
10A(3/8") |
15A(1/2") |
20A(3/4") |
25A(1") |
32A(1-1/4") |
40A(1-1/2") |
50A(2") |
| Actuator Model |
TVSR40 |
TVSR65 |
| Actuator Type |
Double Acting |
| Operating Media |
Compressed Dry Air |
| Operating Pressure |
4~7kg/㎠ |
| Rotating Angle |
90˚ ±5˚ |
| Fluid Temperature |
-20℃ ~ 80℃ |
| Rating |
1000 PSI |
| Body Material |
A351-CF8 / Body |
A351-CF8 / Ball |
PTFE / Seat |
| Accessory |
Solenoid Valve, Limit Switch Box, Air filter Regulator, E/P Positioner |
|
| |
 |
| |

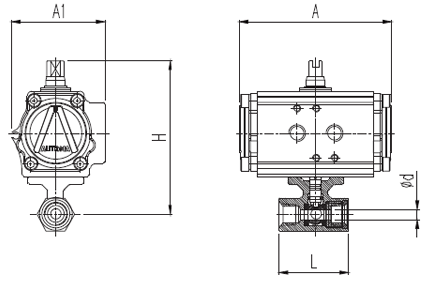

| Dimension |
| End Connection : PT SCREW (mm) |
| Model
|
Size
|
A
|
A1
|
H
(Approx)
|
L
|
Ød
|
| mm
|
Inch
|
| TVSR40-10S1 |
10A |
3/8" |
96 |
63 |
110 |
45 |
7 |
| TVSR40-15S1 |
15A |
1/2" |
96 |
63 |
111 |
55 |
9.2 |
| TVSR40-20S1 |
20A |
3/4" |
96 |
63 |
117 |
60 |
12.5 |
| TVSR40-25S1 |
25A |
1" |
96 |
63 |
120 |
73 |
15 |
| TVSR40-32S1 |
32A |
1-1/4" |
96 |
63 |
123 |
78 |
20 |
| TVSR65-40S1 |
40A |
1-1/2" |
131 |
89 |
159 |
89 |
25 |
| TVSR65-50S1 |
50A |
2" |
131 |
89 |
167 |
100 |
32 |
|
