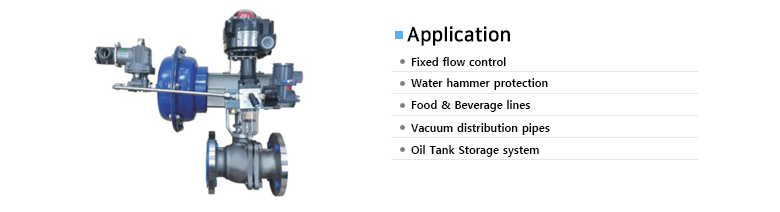

| 2-스테이지 플랜지 볼 밸브 |
| |
| |
 |
| |
 Specification |
| Valve Size |
15A ~ 80A |
| Actuator Model |
TVD65, TVD80 + Diaphragm |
| Actuator Type |
Double Acting |
| Operating Media |
Compressed Dry Air |
| Operating Pressure |
4 ~ 7kg/cm |
| Rotaing Angle |
90° ± 5° |
| Fluid Temperature |
-10℃ ~ 90℃ (-10℃ ~ 150℃) |
| Rating |
|
| Body Material |
| SCS13(SCS14, SCPH2)/Body |
SCS13(SCS14)/Ball |
PTFE(RTFE)/Seat |
|
|
| |
 |
| |

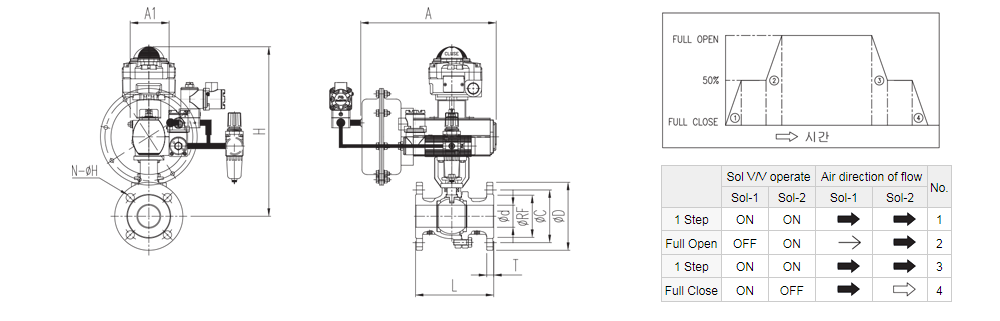

| Dimension |
| Unit : mm |
| Model |
Size |
A |
A1 |
H |
L |
|
| mm |
inch |
Approx. |
T |
Φd |
ΦRF |
ΦC |
ΦD |
N-ΦH |
| TVD65-15F-2ST |
15A |
1/2" |
315 |
89 |
351 |
108 |
12 |
15 |
52 |
70 |
95 |
4-15 |
| TVD65-20F-2ST |
20A |
3/4" |
315 |
89 |
354 |
177 |
14 |
20 |
58 |
75 |
100 |
4-15 |
| TVD65-25F-2ST |
25A |
1" |
315 |
89 |
363 |
127 |
14 |
25 |
70 |
90 |
125 |
4-19 |
| TVD65-32F-2ST |
32A |
1-1/4" |
315 |
89 |
366 |
140 |
16 |
32 |
80 |
100 |
135 |
4-19 |
| TVD65-40F-2ST |
40A |
1-1/2" |
315 |
89 |
388 |
165 |
16 |
40 |
85 |
105 |
140 |
4-19 |
| TVD65-50F-2ST |
50A |
2" |
315 |
89 |
395 |
178 |
16 |
50 |
100 |
120 |
155 |
4-19 |
| TVD80-65F-2ST |
65A |
2-1/2" |
361 |
101 |
423 |
190 |
18 |
65 |
120 |
140 |
175 |
4-19 |
| TVD80-80F-2ST |
80A |
3" |
361 |
101 |
465 |
203 |
18 |
80 |
130 |
150 |
185 |
8-19 |
| TVD100-100F-ST |
100A |
4" |
478 |
137 |
488 |
229 |
18 |
100 |
151 |
175 |
210 |
8-19 |
|
|
|
