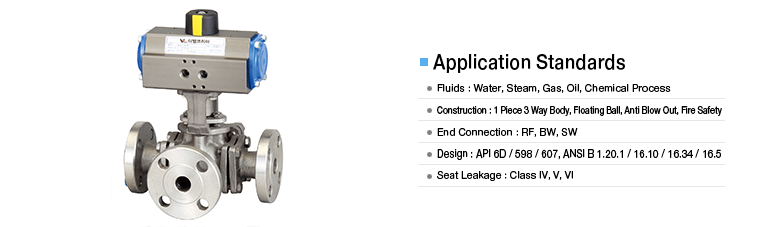

| 플랜지 3 - W a y 볼 밸브 |
| |
| |
 |
| |
 Specification |
| Valve Size |
15A ~ 200A |
| Actuator Model |
TVD50 ~ TVD200 |
| Actuator Type |
Pneumatic Double Acting(with Dry Air) |
| Operating Pressure |
4 ~ 7kg/㎠ |
| Rotating Angle |
90˚ ±5˚ |
| Fluid Temperature |
-10℃ ~ 150℃ |
| Rating |
ANSI 150#(300#) |
| Body Material |
Body(A216 WCB, A351 CF8, 8M) / Ball(A182 F304, 316) / Seat(PTTE, RTFE, PEEK, Matal) |
| Accessory |
Solenoid Valve, Limit Switch Box, Air filter Regulator, E/P Positioner |
|
| |
 |
| |

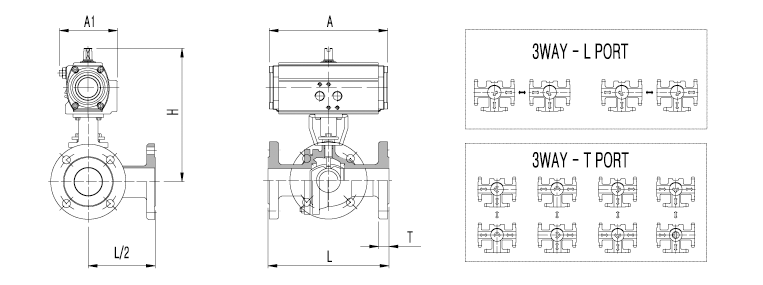

| Dimension |
| Unit : mm |
| Model |
Size |
A |
A1 |
H
(Approx) |
L |
L/2 |
| mm |
inch |
| TVD50-15F3W |
15A |
1/2" |
162 |
75 |
181 |
180 |
90 |
| TVD50-20F3W |
20A |
3/4" |
162 |
75 |
184 |
190 |
95 |
| TVD65-25F3W |
25A |
1" |
202 |
89 |
214 |
200 |
100 |
| TVD65-40F3W |
40A |
1-1/2" |
202 |
89 |
217 |
240 |
120 |
| TVD80-50F3W |
50A |
2" |
262 |
101 |
261 |
260 |
130 |
| TVD80-65F3W |
65A |
2-1/2" |
262 |
101 |
270 |
320 |
160 |
| TVD100-80F3W |
80A |
3" |
311 |
129 |
330 |
360 |
180 |
| TVD125-100F3W |
100A |
4" |
390 |
151 |
368 |
430 |
215 |
| TVD140-125F3W |
125A |
5" |
431 |
164 |
450 |
520 |
260 |
| TVD160-150F3W |
150A |
6" |
506 |
189 |
500 |
560 |
280 |
| TVD200-200F3W |
200A |
8" |
605 |
231 |
643 |
660 |
330 |
|
|
|
