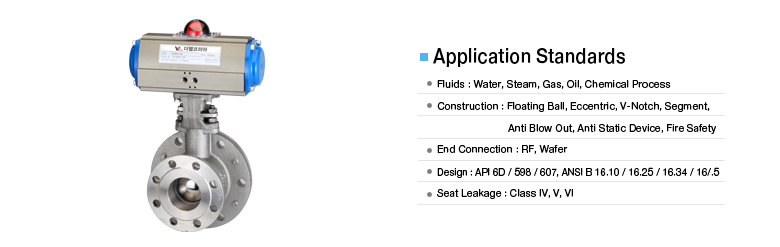

| 탱크 버텀 볼 밸브 |
| |
| |
 |
| |
 Specification |
| Valve Size |
25A(1") ~ 150A(6") |
| Actuator Model |
TVTBB-Series |
| Actuator Type |
Pneumatic Double Acting / Single Acting / Spring Return(with Dry Air) |
| Operating Media |
Compressed Dry Air |
| Operating Pressure |
4 ~ 7kg/㎠ |
| Fluid Temperature |
-10℃ ~ 110℃ |
| Rating |
ANSI 150# |
| Material |
Body(A216 WCB, A351 CF8, 8M) / Ball(A351 CF8, 8M/A182 F304, 316) / Seat(RTFE, RTFE, PEEK, Metal) |
| Accessory |
Solenoid Valve, Limit Switch Box, Air Filter & Regulator, Speed Controller, E/P Positioner, Manual Handle |
|
| |
 |
| |

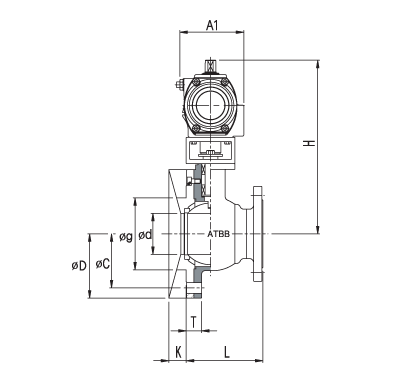

| Dimension |
| Unit : mm |
| Model |
A1 |
H
(Approx) |
L |
K |
TANK PAD CONNECTION(MAKER STANDARD) |
| T |
Ød |
Øg |
ØC |
ØD |
N-ØH |
| TVTBB50-25F |
75 |
235 |
93 |
28.5 |
25 |
25 |
49 |
105 |
140 |
4-15 |
| TVTBB65-40F |
89 |
289 |
109 |
29 |
25 |
40 |
61 |
120 |
155 |
4-15 |
| TVTBB65-50F |
89 |
302 |
124 |
32 |
28 |
50 |
77 |
140 |
175 |
4-15 |
| TVTBB80-65F |
101 |
331 |
131 |
37 |
30 |
65 |
102 |
160 |
195 |
6-15 |
| TVTBB80-80F |
101 |
351 |
153 |
45 |
32 |
80 |
140 |
210 |
250 |
6-19 |
| TVTBB100-100F |
129 |
383 |
170 |
62.5 |
35 |
100 |
166 |
240 |
280 |
8-19 |
| TVTBB125-125F |
151 |
450 |
254 |
62.5 |
43 |
125 |
192 |
265 |
305 |
8-19 |
| TVTBB140-150F |
164 |
516 |
277 |
62.5 |
45 |
150 |
243 |
310 |
350 |
8-23 |
|
|
|
