 Specification |
| Item |
TVDR32 |
TVDR40 |
TVDR50 |
TVDR65 |
TVDR80 |
TVDR90 |
TVDR100 |
TVDR115 |
TVDR125 |
TVDR140 |
TVDR160 |
TVDR185 |
TVDR200 |

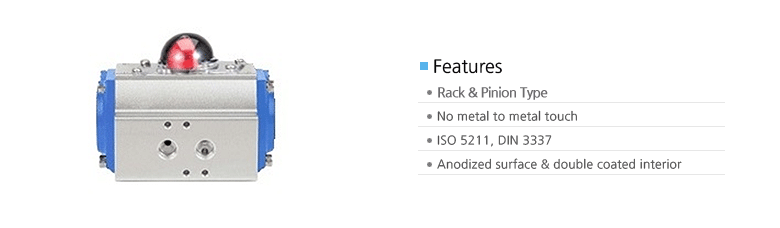

| Operating Type |
Rack & Pinion |
| Operating Media |
Compressed Dry Air |
| Operating Pressure |
4 ~ 7kg/㎠ |
| Rotating Angle |
90° +5°/-10° |
| Operating Temperature |
'-20°C ~ 80°C(Option : -40°C ~ 200°C) |
| Weight (kg) |
0.3 |
0.5 |
1.0 |
1.4 |
2.9 |
3.4 |
4.7 |
7.3 |
8.6 |
12.4 |
16.9 |
27.1 |
32.3 |
|
| |

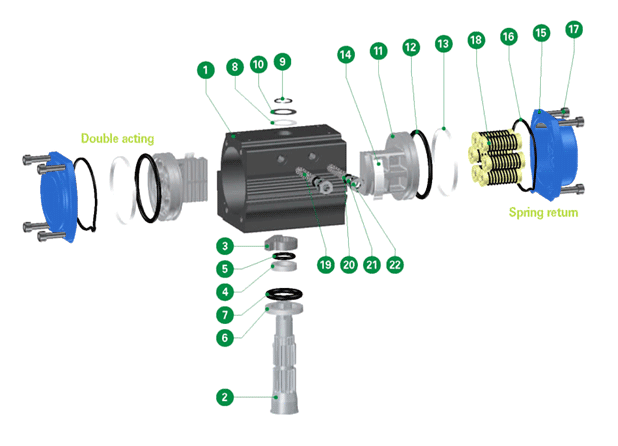

| Part and Material |
 |
| No. |
Part Name |
Materials |
No. |
Part Name |
Materials |
| 1 |
Body |
Aluminum Alloy |
12 |
Piston O-ring |
NBR |
| 2 |
Shaft |
Steel Alloy(Nickel Plated) |
13 |
Piston Guide-ring |
Engineering Plastic |
| 3 |
Stopper |
Steel Alloy |
14 |
Piston Pad |
Engineering Plastic |
| 4 |
Bushing(Top) |
Engineering Plastic |
15 |
Cover |
Aluminum Alloy |
| 5 |
Body O-ring(Top) |
NBR |
16 |
Cover O-ring |
NBR |
| 6 |
Bushing(Bottom) |
Engineering Plastic |
17 |
Cover Bolt |
Steel Alloy |
| 7 |
Body O-ring(Bottom) |
NBR |
18 |
Spring Unit(Only Single) |
Steel Alloy + Plastic Guide |
| 8 |
Body Washer(Bottom) |
Engineering Plastic |
19 |
Adjust Bolt |
Steel Alloy |
| 9 |
Body Washer(Top) |
Stainless Steel |
20 |
Adjust O-ring |
NBR |
| 10 |
Body Snap-ring |
Stainless Steel |
21 |
Adjust Washer |
Stainless Steel |
| 11 |
Piston |
Aluminum Alloy |
22 |
Adjust Nut |
Stainless Steel |
|
| |
| Torque Table |
| Unit : Nm |
| Model |
Supply Air |
| 4bar |
5bar |
6bar |
7bar |
| TVDR32 |
4.5 |
6.0 |
7.3 |
8.5 |
| TVDR40 |
7.0 |
9.0 |
11.0 |
12.8 |
| TVDR50 |
13.7 |
17.1 |
20.6 |
24.0 |
| TVDR65 |
25.4 |
31.8 |
38.2 |
44.6 |
| TVDR80 |
52.2 |
65.3 |
78.4 |
91.5 |
| TVDR90 |
77.1 |
96.4 |
115.7 |
134.9 |
| TVDR100 |
112.5 |
140.6 |
168.7 |
196.8 |
| TVDR115 |
178.5 |
223.1 |
267.7 |
312.4 |
| TVDR125 |
228.4 |
285.4 |
342.5 |
399.5 |
| TVDR140 |
324.4 |
405.5 |
486.6 |
567.7 |
| TVDR160 |
467.6 |
584.4 |
701.3 |
818.2 |
| TVDR185 |
742.1 |
927.5 |
1113.0 |
1298.5 |
| TVDR200 |
967.2 |
1209.0 |
1450.8 |
1692.6 |
|
| |

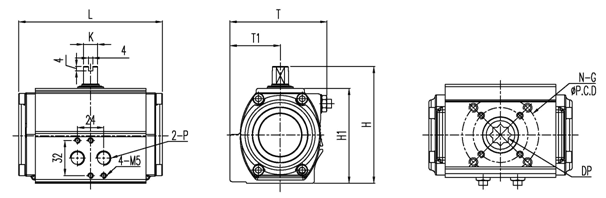

| Dimension |
|
|
| Model |
PT |
| TVDR32, TVDR40 |
PT 1/8 |
| TVDR50 ~ TVDR200 |
PT 1/4 |
|
| |

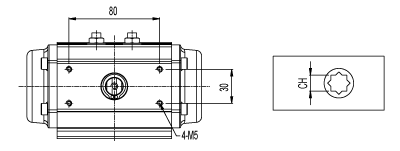

| Model |
K1 |
K2 |
| TVDR32 |
25.5 |
25.5 |
| TVDR40 |
50 |
25 |
| TVDR50 ~ TVDR160 |
80 |
30 |
| TVDR185 ~ |
130 |
30 |
|
|
|
| |
| Unit : mm |
| Model |
ISO |
ØP.C.D |
N-G |
K |
L |
T |
T1 |
H |
H1 |
CH(Sta) |
CH(Opt) |
DP |
| TVDR32 |
F03 |
36 |
4-M5 |
7 |
66 |
45 |
25 |
55 |
45 |
9x9 |
- |
9 |
| TVDR40 |
F03/F05 |
36/50 |
4-M5/M6 |
9 |
97 |
63 |
32 |
75 |
55 |
9x9 |
- |
9 |
| TVDR50 |
F03/F05/F07 |
36/50/70 |
4-M5/M6/M8 |
9 |
119 |
75 |
40 |
90 |
70 |
11x11 |
- |
13 |
| TVDR65 |
F05/F07 |
50/70 |
4-M6/M8 |
13 |
131 |
89 |
46 |
106.5 |
86.5 |
14x14 |
- |
16 |
| TVDR80 |
F07 |
70 |
4-M8 |
19 |
189 |
101 |
49.5 |
126 |
106 |
17x17 |
- |
19 |
| TVDR90 |
F07 |
70 |
4-M8 |
19 |
188 |
104 |
54.5 |
136 |
116 |
17x17 |
- |
19 |
| TVDR100 |
F07/F10 |
70/102 |
4-M8/M10 |
19 |
229 |
132 |
61.5 |
148 |
128 |
22x22 |
17x17(19) |
26 |
| TVDR115 |
F07/F10 |
70/102 |
4-M8/M10 |
19 |
265 |
142 |
67.5 |
163 |
143 |
22x22 |
- |
26 |
| TVDR125 |
F07/F10 |
70/102 |
4-M8/M10 |
19 |
299 |
151 |
71.5 |
174 |
154 |
22x22 |
- |
26 |
| TVDR140 |
F10/F12 |
102/125 |
4-M10/M12 |
24 |
332 |
164 |
77 |
192 |
172 |
27x27 |
22x22(26) |
30 |
| TVDR160 |
F10/F12 |
102/125 |
4-M10/M12 |
24 |
364 |
188 |
103.5 |
216 |
196 |
27x27 |
- |
30 |
| TVDR185 |
F10/F12 |
102/125 |
4-M10/M12 |
30 |
434 |
217 |
103 |
254 |
224 |
27x27 |
- |
30 |
| TVDR200 |
F14 |
140 |
4-M16 |
36 |
444 |
231 |
115 |
284 |
254 |
36x36 |
- |
30 |
|
