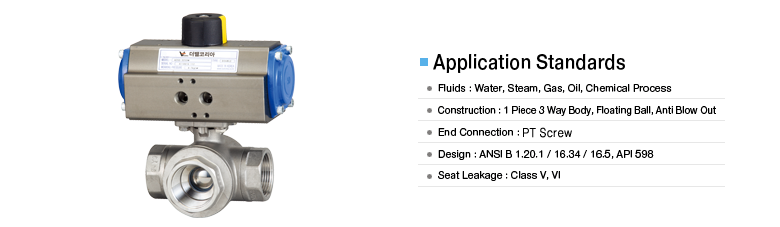

| 스크류 3 - W a y 볼 밸브 |
| |
| |
 |
| |
 Specification |
| Valve Size |
8A(1/4") ~ 50A(2") |
| Actuator Model |
TVD40 /TVD50 / TVD65 |
| Actuator Type |
Pneumatic Double Acting(with Dry Air) |
| Operating Pressure |
4 ~ 7kg/㎠ |
| Rotating Angle |
90˚ ±5˚ |
| Fluid Temperature |
-10℃ ~ 90℃ |
| Rating |
1000 PSI |
| Body Material |
Body(A351 CF8M) / Ball(A182 F304, 316) / Seat(PTTE) |
| Accessory |
Solenoid Valve, Limit Switch Box, Air filter Regulator, E/P Positioner |
|
| |
 |
| |

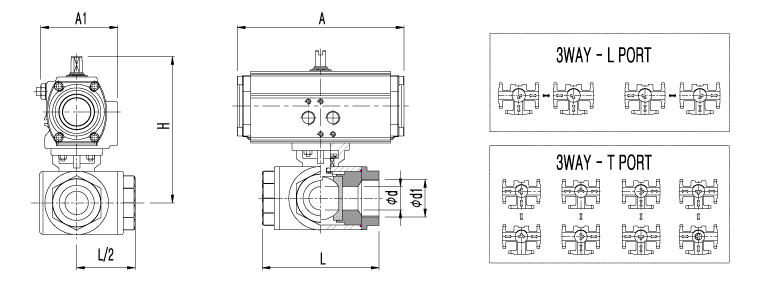

| Dimension |
| Unit : mm |
| Model |
Size |
A |
A1 |
H
(Approx) |
L |
L/2 |
Ød |
Ød1 |
| mm |
inch |
| TVD40-8S3W |
8A |
1/4" |
108 |
60 |
130 |
73 |
36 |
11 |
1/4" |
| TVD40-10S3W |
10A |
3/8" |
108 |
60 |
130 |
73 |
36 |
11 |
3/8" |
| TVD40-15S3W |
15A |
1/2" |
108 |
60 |
130 |
73 |
36 |
12 |
1/2" |
| TVD50-20S3W |
20A |
3/4" |
162 |
75 |
149 |
85 |
42 |
15 |
3/4" |
| TVD50-25S3W |
25A |
1" |
162 |
75 |
157 |
100 |
50 |
20 |
1" |
| TVD65-32S3W |
32A |
1-1/4" |
202 |
89 |
180 |
113 |
56 |
25 |
1-1/4" |
| TVD65-40S3W |
40A |
1-1/2" |
202 |
89 |
186 |
127 |
63 |
32 |
1-1/2" |
| TVD65-50S3W |
50A |
2" |
202 |
89 |
197 |
150 |
75 |
38 |
2" |
|
|
|
