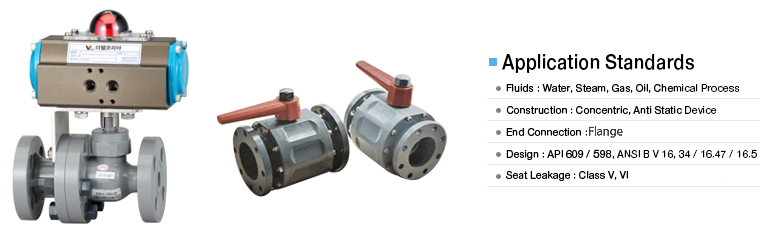

| 내산용 볼 밸브 |
| |
| |
 |
| |
 Specification |
| Valve Size |
15A(1/2") ~ 150A(6")
|
| Actuator Model |
TVH50 ~ TVH125 |
| Actuator Type |
Pneumatic Double Acting(with Dry Air) |
| Operating Pressure |
4 ~ 7kg/㎠ |
| Rotating Angle |
90˚ ±5˚ |
| Fluid Temperature |
-10℃ ~ 140℃ |
| Rating |
KS(10K, 20K) ANSI (150#, 300#), DIN |
| Material |
PVC, PP, PPG, U-PVC, C-PVC, PVDF |
| Accessory |
Solenoid Valve, Limit Switch Box, Air filter Regulator, E/P Positioner |
|
| |
 |
| |
| Dimension |
| Unit : mm |
| Model |
Size |
A |
A1 |
H
(Approx) |
L |
| mm |
inch |
| TVH50-15F |
15A |
1/2" |
162 |
75 |
168 |
143 |
| TVH50-20F |
20A |
3/4" |
162 |
75 |
177 |
172 |
| TVH50-25F |
25A |
1" |
162 |
75 |
190 |
187 |
| TVH50-32F |
32A |
1-1/4" |
162 |
75 |
200 |
190 |
| TVH65-40F |
40A |
1-1/2" |
202 |
89 |
212 |
212 |
| TVH65-50F |
50A |
2" |
202 |
89 |
227 |
234 |
| TVH65-65F |
65A |
2-1/2" |
202 |
89 |
247 |
259 |
| TVH80-80F |
80A |
3" |
262 |
101 |
276 |
304 |
| TVH80-100F |
100A |
4" |
262 |
101 |
301 |
372 |
| TVH100-125F |
125A |
5" |
311 |
129 |
358 |
387 |
| TVH125-150F |
150A |
6" |
390 |
151 |
414 |
391 |
|
|
|
