공압 구동기

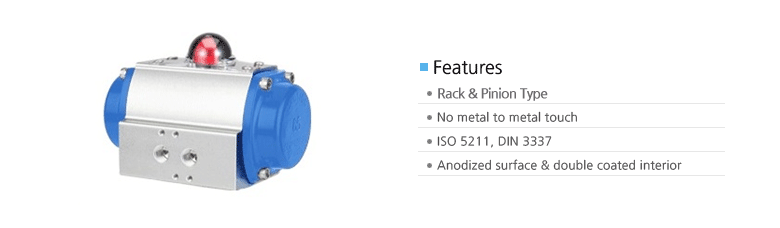

랙앤피니언 타입

TVDR Series   TVSR Series


Specification
Item TVSR40 TVSR50 TVSR65 TVSR80 TVSR90 TVSR100 TVSR115 TVSR125 TVSR140 TVSR160 TVSR185 TVSR200
Operating Type Rack & Pinion
Operating Media Compressed Dry Air
Operating Pressure 4.5 ~ 7kg/cm2
Rotating Angle 90° +5°/-10°
Operating Temperature -20°C ~ 80°C(Option : -40°C ~ 200°C)
Weight(kg) 0.6 1.1 1.5 3.3 3.8 5.4 8.4 9.9 14.5 19.5 31.6 37.9

Part and Material
No. Part Name Materials No. Part Name Materials
1 Body Aluminum Alloy 12 Piston O-ring NBR
2 Shaft Steel Alloy(Nickel Plated) 13 Piston Guide-ring Engineering Plastic
3 Stopper Steel Alloy 14 Piston Pad Engineering Plastic
4 Bushing(Top) Engineering Plastic 15 Cover Aluminum Alloy
5 Body O-ring(Top) NBR 16 Cover O-ring NBR
6 Bushing(Bottom) Engineering Plastic 17 Cover Bolt Steel Alloy
7 Body O-ring(Bottom) NBR 18 Spring Unit(Only Single) Steel Alloy + Plastic Guide
8 Body Washer(Bottom) Engineering Plastic 19 Adjust Bolt Steel Alloy
9 Body Washer(Top) Stainless Steel 20 Adjust O-ring NBR
10 Body Snap-ring Stainless Steel 21 Adjust Washer Stainless Steel
11 Piston Aluminum Alloy 22 Adjust Nut Stainless Steel

Torque Table
Unit : Nm
Model Spring
Unit		 Supply Air
4.5bar 5bar 6bar 7bar Spring
0° 90° 0° 90° 0° 90° 0° 90° 90° 0°
TVSR40 1 5.8 4.7 6.7 5.6 8.6 7.5 10.4 9.3 2.8 1.8
2 3.6 1.4 4.5 2.3 6.4 4.2 8.2 6.0 6.4 4.2
TVSR50 8 9.9 7.4 11.5 9.1 15.0 12.6 18.4 16.0 8.0 5.6
9 9.2 6.4 10.8 8.0 14.3 11.5 17.7 14.9 9.1 6.3
10 8.5 5.5 10.2 7.1 13.7 10.6 17.1 14.0 10.0 6.9
11 7.8 4.4 9.5 6.1 13.0 9.6 16.4 13.0 11.0 7.6
12 - - - - 12.3 8.5 15.7 11.9 12.1 8.3
TVSR65 8 19.2 14.3 22.4 17.5 28.7 23.8 35.1 30.2 14.4 9.5
9 18.0 12.5 21.2 15.6 27.6 22.0 34.0 28.4 16.2 10.6
10 16.8 10.6 20.0 13.8 26.4 20.2 32.8 26.6 18.0 11.8
11 15.6 8.8 18.8 12.0 25.2 18.4 31.6 24.8 19.8 13.0
12 - - - - 24.1 16.7 30.4 23.1 21.5 14.2
TVSR80 8 38.7 27.3 45.2 33.8 58.3 46.9 71.3 60.0 30.7 20.1
9 36.2 23.3 42.7 29.8 55.7 42.9 68.8 56.0 35.5 22.6
10 33.7 19.5 40.4 25.9 53.2 39.0 66.3 52.1 39.4 25.1
11 31.2 15.5 37.7 22.0 50.7 35.0 63.8 48.1 43.2 27.6
12 - - - - 48.2 31.2 61.3 44.3 47.2 30.1
TVSR90 8 56.2 38.5 65.8 48.1 85.0 67.4 104.3 86.6 48.3 30.6
9 52.3 32.4 61.9 42.0 81.2 61.3 100.4 80.5 54.4 34.5
10 48.4 26.4 58.0 36.0 77.3 55.2 96.5 74.5 60.5 38.4
11 44.7 20.4 54.3 30.0 73.5 49.3 92.8 68.5 66.4 42.1
12 - - - - 69.7 43.2 88.9 62.4 72.5 46.0
TVSR100 8 84.8 61.6 98.9 75.7 127.0 103.8 155.1 131.9 64.9 41.7
9 79.5 53.5 93.6 67.6 121.7 95.7 149.9 123.8 73.0 47.0
10 74.3 45.3 88.4 59.4 116.5 87.6 144.6 115.7 81.2 52.2
11 69.1 37.2 83.2 51.3 111.3 79.4 139.5 107.5 89.3 57.4
12 - - - - 106.1 71.4 134.2 99.5 97.3 62.6
TVSR115 8 112.1 81.5 130.8 100.1 168.0 137.3 205.1 174.5 85.8 55.2
9 105.2 70.7 123.8 89.4 161.0 126.5 198.2 163.7 96.6 62.1
10 98.2 59.9 116.9 78.6 154.1 115.8 191.2 153.0 107.3 69.1
11 91.4 49.2 110.1 67.8 147.3 105.0 184.4 142.2 118.1 75.9
12 - - - - 140.3 94.4 177.5 131.6 128.7 82.8
TVSR125 8 170.4 120.9 198.9 149.5 256.0 206.5 313.0 263.6 136.0 86.5
9 159.5 104.4 188.1 133.0 245.1 190.0 302.2 247.1 152.4 97.3
10 148.7 86.9 177.3 115.5 234.3 172.5 291.4 229.6 170.0 108.2
11 137.4 70.5 165.9 99.0 223.0 156.0 280.1 213.1 186.4 119.5
12 - - - - 212.7 138.5 269.8 195.6 203.9 129.8
TVSR140 8 241.9 172.9 282.5 213.5 363.6 294.6 444.7 375.7 192.0 123.1
9 227.0 148.7 267.5 189.2 348.6 270.3 429.7 351.4 216.3 138.0
10 211.1 124.4 251.7 165.0 332.8 246.1 413.9 327.2 240.5 153.8
11 196.2 101.1 236.8 141.7 317.9 222.8 399.0 303.9 263.8 168.7
12 - - - - 302.0 198.6 383.1 279.7 288.0 184.6
TVSR160 8 340.6 252.0 399.0 310.4 515.9 427.3 632.8 544.3 274.0 185.4
9 318.0 218.1 376.4 276.5 493.3 393.4 610.2 510.3 308.0 208.1
10 295.3 184.1 353.7 242.5 470.6 359.4 587.5 476.3 342.0 230.7
11 271.6 150.1 330.0 208.5 446.9 325.4 563.8 442.3 376.0 254.4
12 - - - - 424.3 290.4 541.2 407.3 411.0 277.1
TVSR185 8 455.4 337.0 533.5 415.0 689.8 571.3 846.0 727.6 366.3 247.9
9 425.1 291.5 503.2 369.6 659.5 525.9 815.7 682.2 411.7 278.2
10 394.8 246.1 472.9 324.2 629.2 480.4 785.5 636.7 457.2 308.5
11 363.1 200.6 441.2 278.7 597.5 435.0 753.8 591.3 502.6 340.1
12 - - - - 567.2 388.2 723.5 544.5 549.4 370.4
TVSR200 8 764.9 523.1 885.8 644.1 1127.9 885.8 1369.9 1127.9 565.0 323.2
9 724.5 452.5 845.4 573.4 1087.7 815.1 1328.7 1056.8 635.6 363.6
10 684.1 381.8 805.0 502.7 1046.5 744.5 1288.5 986.3 706.3 404.0
11 643.8 311.3 764.7 432.2 1006.4 673.9 1248.4 915.8 776.8 444.3
12 603.3 240.6 724.2 361.5 965.9 603.3 1208.2 845.1 847.5 484.8

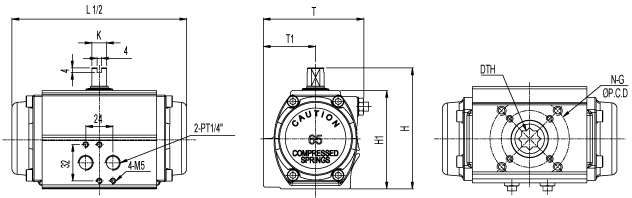

Dimension


Model PT
TVSR40 PT 1/8
TVSR50 ~ TVSR200 PT 1/4

Model K1 K2
TVSR40 50 25
TVSR50 ~ TVSR160 80 30
TVSR200 ~ 130 30

Unit : mm
Model ISO ØP.C.D N-G K L T T1 H H1 CH(Sta) CH(Opt) DP
TVSR40 F03/F05 36/50 4-M5/M6 9 97 63 32 75 55 9x9 - 9
TVSR50 F03/F05/F07 36/50/70 4-M5/M6/M8 9 133 75 40 90 70 11x11 - 13
TVSR65 F05/F07 50/70 4-M6/M8 13 154 89 46 106.5 86.5 14x14 - 16
TVSR80 F07 70 4-M8 19 220 101 49.5 126 106 17x17 - 19
TVSR90 F07 70 4-M8 19 223 104 54.5 136 116 17x17 - 19
TVSR100 F07/F10 70/102 4-M8/M10 19 256 132 61.5 148 128 22x22 17x17(19) 26
TVSR115 F07/F10 70/102 4-M8/M10 19 302 142 67.5 163 143 22x22 - 26
TVSR125 F07/F10 70/102 4-M8/M10 19 330 151 71.5 174 154 22x22 - 26
TVSR140 F10/F12 102/125 4-M10/M12 24 389 164 77 192 172 27x27 22x22(26) 30
TVSR160 F10/F12 102/125 4-M10/M12 24 416 188 103.5 216 196 27x27 - 30
TVSR185 F10/F12 102/125 4-M10/M12 30 465 217 103 254 224 27x27 - 30
TVSR200 F14 140 4-M16 36 527 231 115 284 254 36x36 - 30
