공압 구동기
리니어 타입

TVLCD Series   TVLCS Series   TDA Series


Specification
Item ALC150S ALC200S ALC250S ALC300S
Operating Type Linear Type(Single Acting)
Operating Media Compressed Dry Air
Operating Pressure 4.5 ~ 7kg/cm2
Oprating Range Depending On The Valve
Operating Temperature -20°C ~ 80°C(Option : -40°C ~ 200°C)

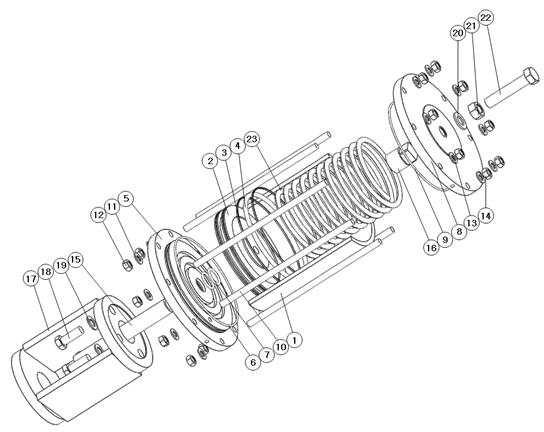

Part and Material

No. Part Name Materials No. Part Name Materials
1 Cylinder Steel Alloy 13 Cylinder Guide Washer Stainless Steel
2 Piston Steel Alloy 14 Cylinder Guide Nut Stainless Steel
3 Piston Guide Ring Engineering Plastic 15 Piston Rod Steel Alloy
4 Piston O-Ring NBR 16 Piston Fixing Bolt Steel Alloy
5 Cylinder Cover(Bottom) Steel Alloy 17 Bracket Steel Alloy
6 Cylinder Cover O-Ring NBR 18 Bracket Bolt Stainless Steel
7 Piston Rod O-Ring NBR 19 Bracket Washer Stainless Steel
8 Cylinder Cover(Top) Steel Alloy 20 Stopper Washer Stainless Steel
9 Cylinder Cover O-Ring NBR 21 Stopper Nut Stainless Steel
10 Cylinder Guide Bolt Steel Alloy 22 Stopper Bolt Stainless Steel
11 Cylinder Guide Washer Stainless Steel 23 Spring Steel Alloy
12 Cylinder Guide Nut Stainless Steel 　 　 　
