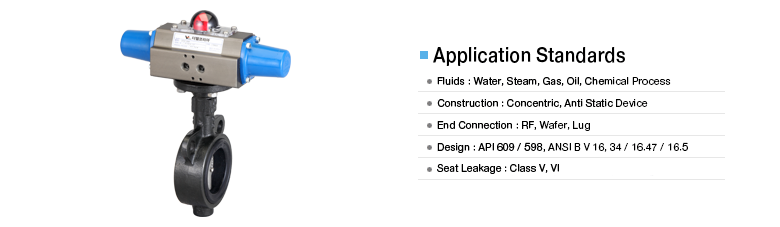

| 버터 플라이 밸브 |
| |
|
| |
 |
| |
 Specification |
| Valve Size |
40A(1/2") ~ 1000A(40") |
| Actuator Model |
TVD50 ~ TVD200 |
| Actuator Type |
Pneumatic Double Acting(with Dry Air) |
| Operating Pressure |
4 ~ 7kg/㎠
|
| Rotating Angle |
90˚ ±5˚ |
| Fluid Temperature |
-10℃ ~ 200℃ |
| Rating |
ANSI 150# |
| Body Material |
Body(A216 CL B, A216 WCB, A351 CF8) / Disc(A351 CF8, CF8M) / Seat(EPDM,VITON) |
| Accessory |
Solenoid Valve, Limit Switch Box, Air filter Regulator, E/P Positioner |
|
| |
 |
| |

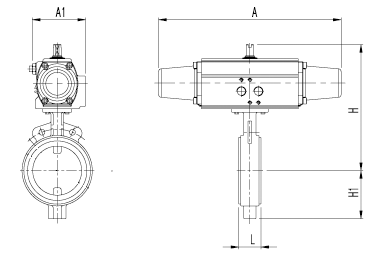

| Dimension |
| Unit : mm |
| Model |
Size |
A |
A1 |
H
(Approx) |
H1 |
L |
| mm |
inch |
| TVS50-40BF |
40A |
1-1/2" |
257 |
75 |
215 |
58 |
41 |
| TVS50-50BF |
50A |
2" |
257 |
75 |
217 |
65 |
43 |
| TVS65-65BF |
65A |
2-1/2" |
314 |
89 |
250 |
71 |
46 |
| TVS65-80BF |
80A |
3" |
314 |
89 |
256 |
83 |
46 |
| TVS80-100BF |
100A |
4" |
430 |
101 |
287 |
100 |
52 |
| TVS80-125BF |
125A |
5" |
430 |
101 |
300 |
110 |
56 |
| TVS100-150BF |
150A |
6" |
500 |
129 |
334 |
130 |
56 |
| TVS100-200BF |
200A |
8" |
500 |
129 |
390 |
163 |
60 |
| TVS125-250BF |
250A |
10" |
606 |
151 |
455 |
227 |
68 |
| TVS140-300BF |
300A |
12" |
682 |
164 |
500 |
252 |
78 |
| TVS160-350BF |
350A |
14" |
781 |
189 |
544 |
272 |
78 |
| TVS160-400BF |
400A |
16" |
781 |
189 |
585 |
343 |
102 |
| TVS200-450BF |
450A |
18" |
982 |
231 |
704 |
366 |
114 |
| TVS200-500BF |
500A |
20" |
982 |
231 |
780 |
421 |
127 |
|
|
|
